Data Link Connector: Diagrams

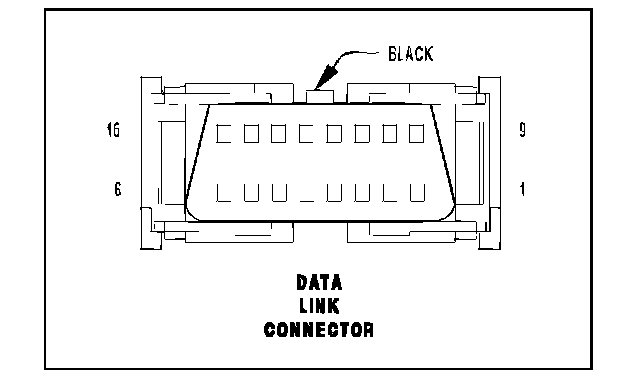

Data Link Connector - Black (Instrument Panel) 16 Way (Part 1):

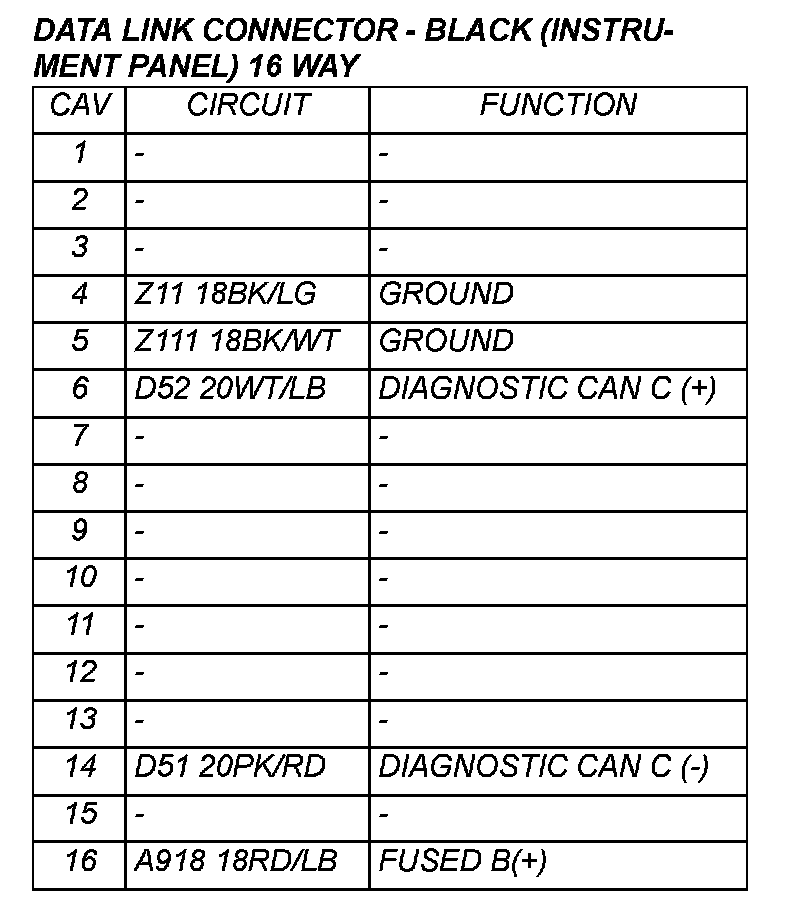

Data Link Connector - Black (Instrument Panel) 16 Way (Part 2):
