Fuel Pump Module

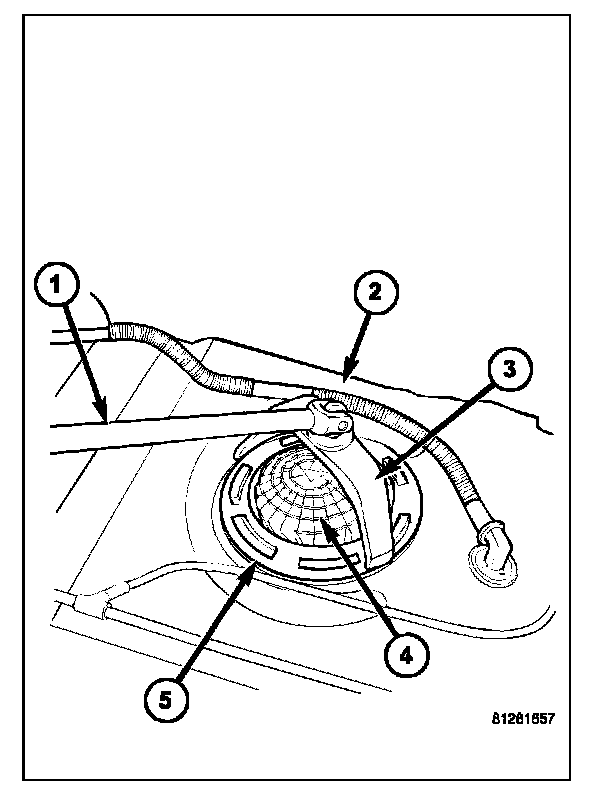

The fuel pump module assembly (4) is located on the top of the fuel tank (2).

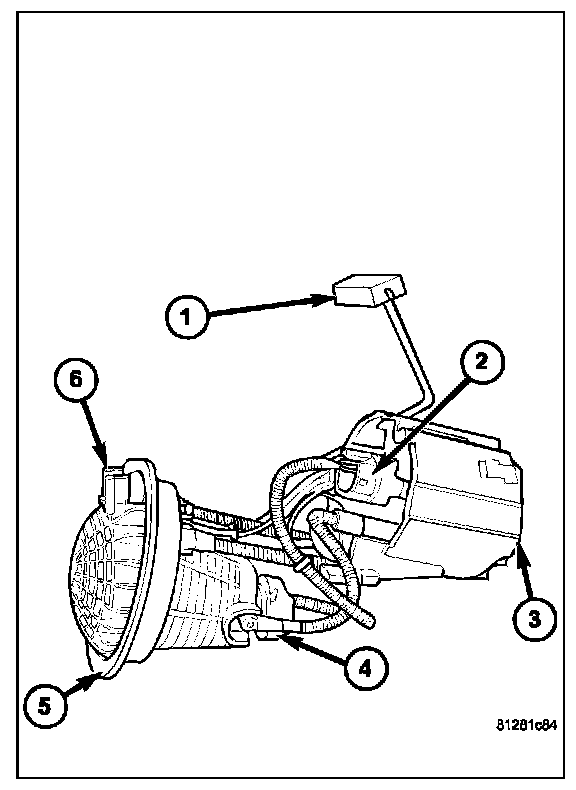

The module assembly contains the component:

- A fuel gauge sending unit (fuel level sensor) (1)

Fuel Gauge Sending Unit (Fuel level sensor)

The fuel gauge sending unit (fuel level sensor) is attached to the side of the fuel pump module.
