Seat Temperature Control Module: Service and Repair
SWITCH/MODULE - HEATED SEATREMOVAL
1. Disconnect and isolate the battery negative cable.

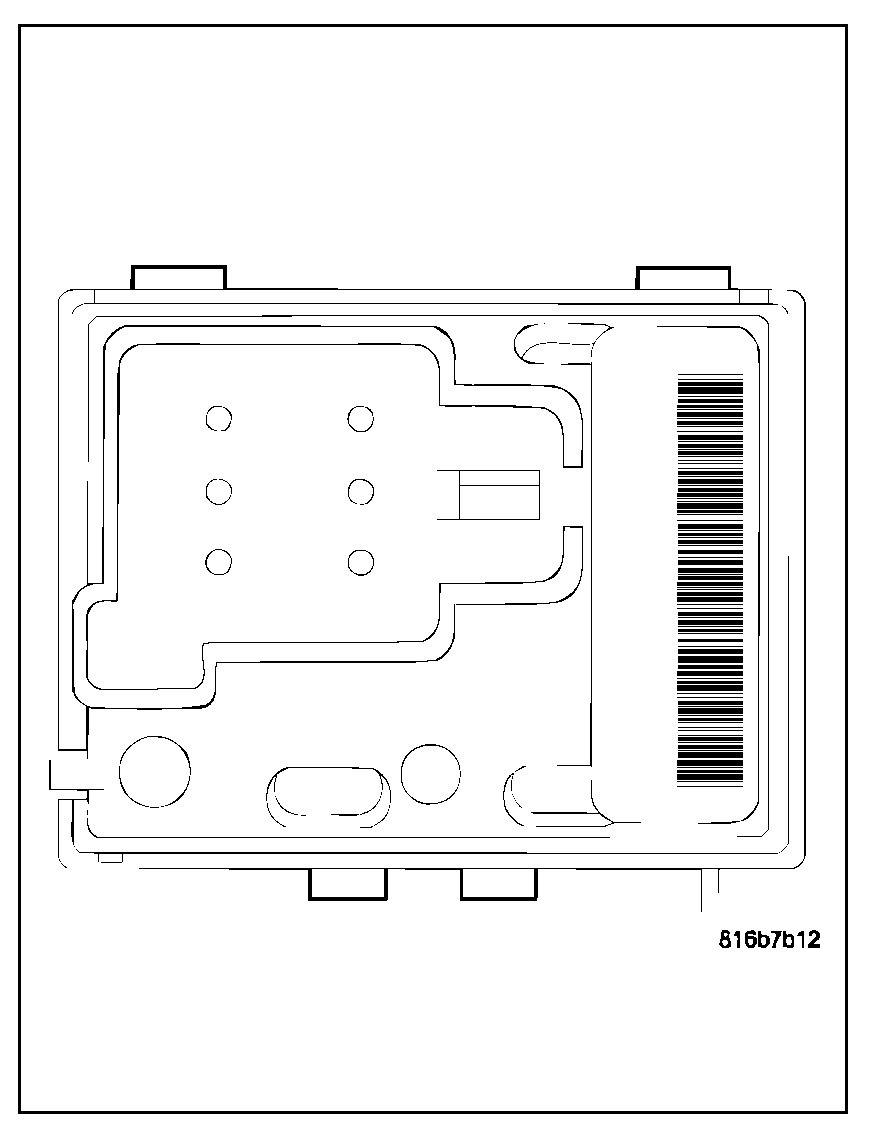

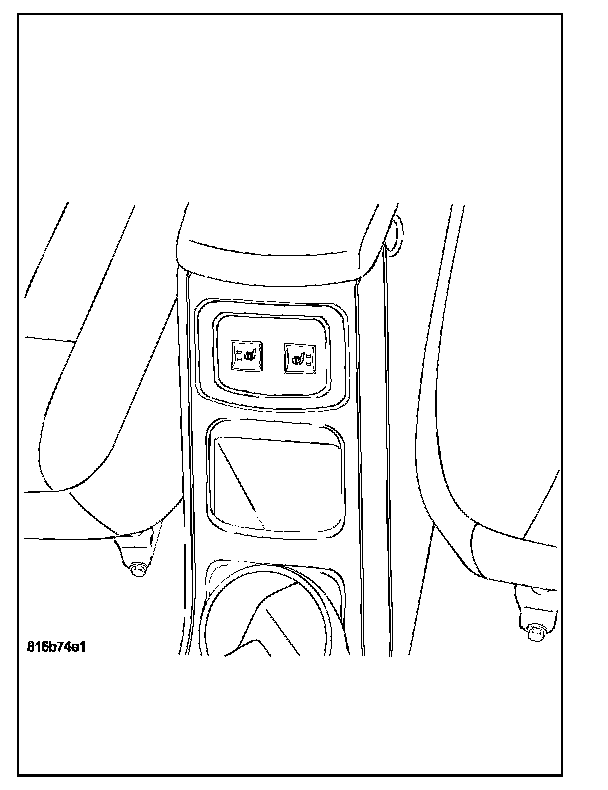

2. Using an appropriate flat bladed tool, remove the heated seat switch/modules from the console by gently prying up from the top edge of the switch/module bezel. Take care not to scratch or damage the console or bezel in any way.

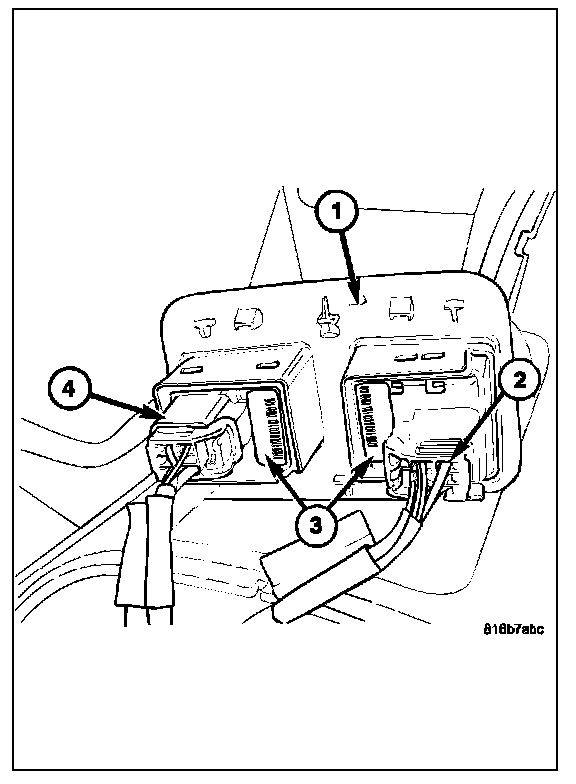

3. Disconnect the switch/module electrical connectors (2) and (4).
4. Using an appropriate flat bladed tool, remove the heated seat switch/module (3) from the bezel (1).
INSTALLATION
1. Align the tabs of the switch/module to the bezel and gently push together until the tabs are securely in place.
2. Connect the switch/module electrical connectors (2) and (4).
3. Gently push the heated seat switch/module bezel into the mounting hole in the center console until it is securely in place.
4. Connect the battery negative cable.
5. Verify heated seat system operation.
