System Specifications

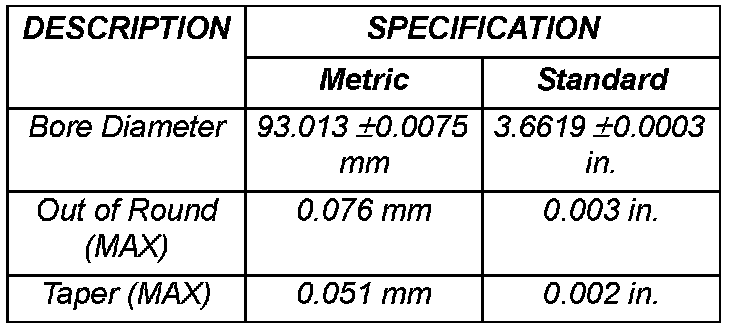

CYLINDER BLOCK

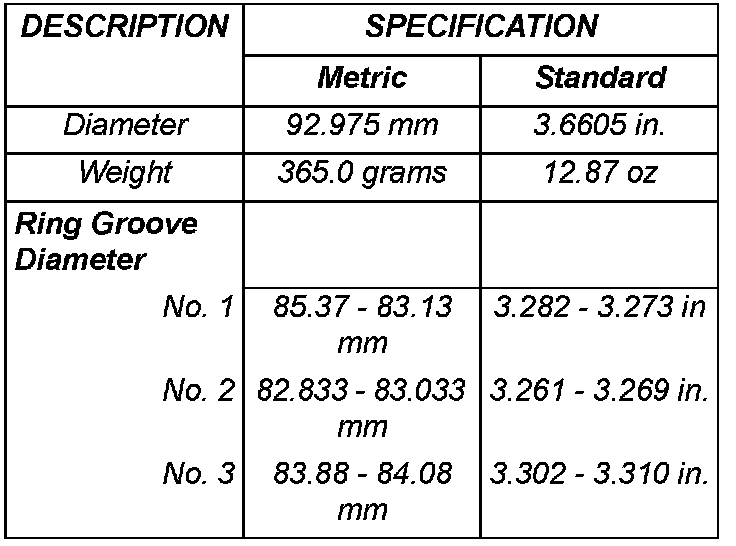

PISTONS

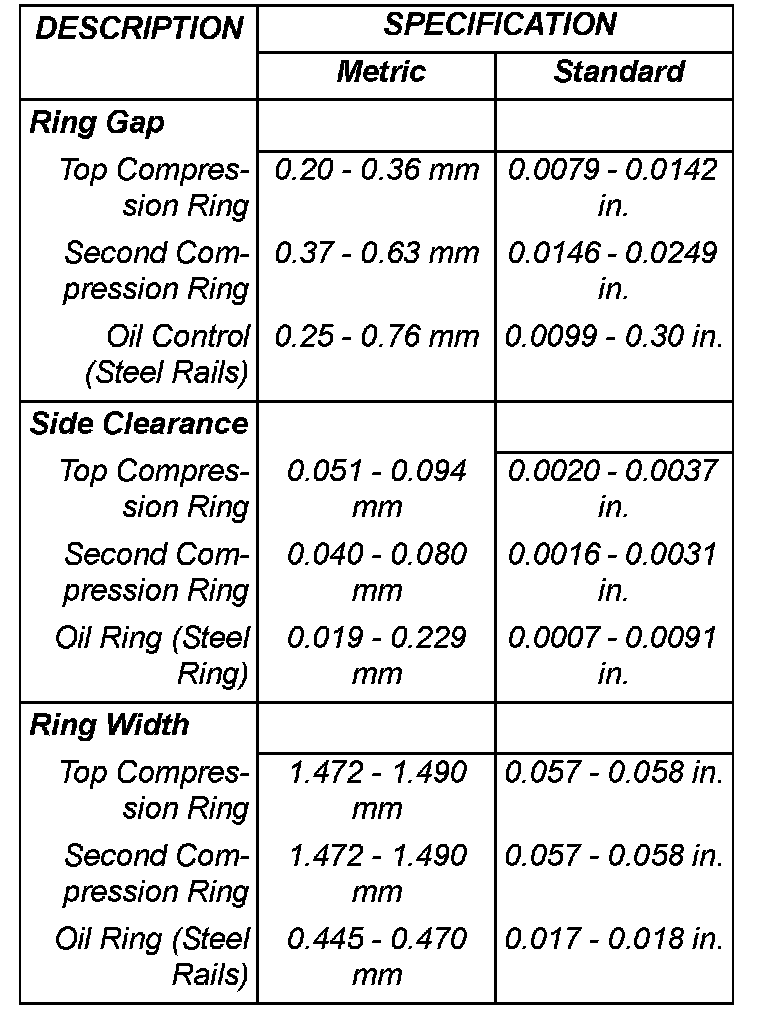

PISTON RINGS

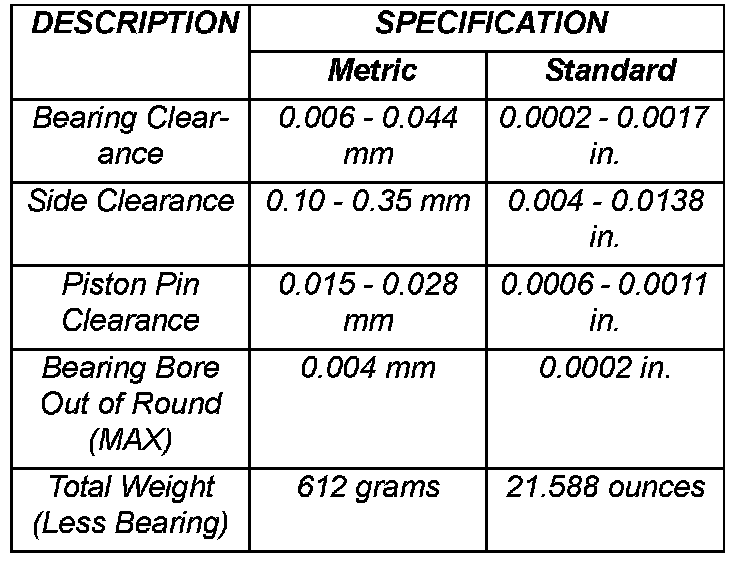

CONNECTING RODS





Lubricate NEW rod bolts and bearing surfaces with engine oil. Install connecting rod cap and bearing. Tighten the NEW bolts to 27 Nm (20 ft. lbs.) plus 90°.

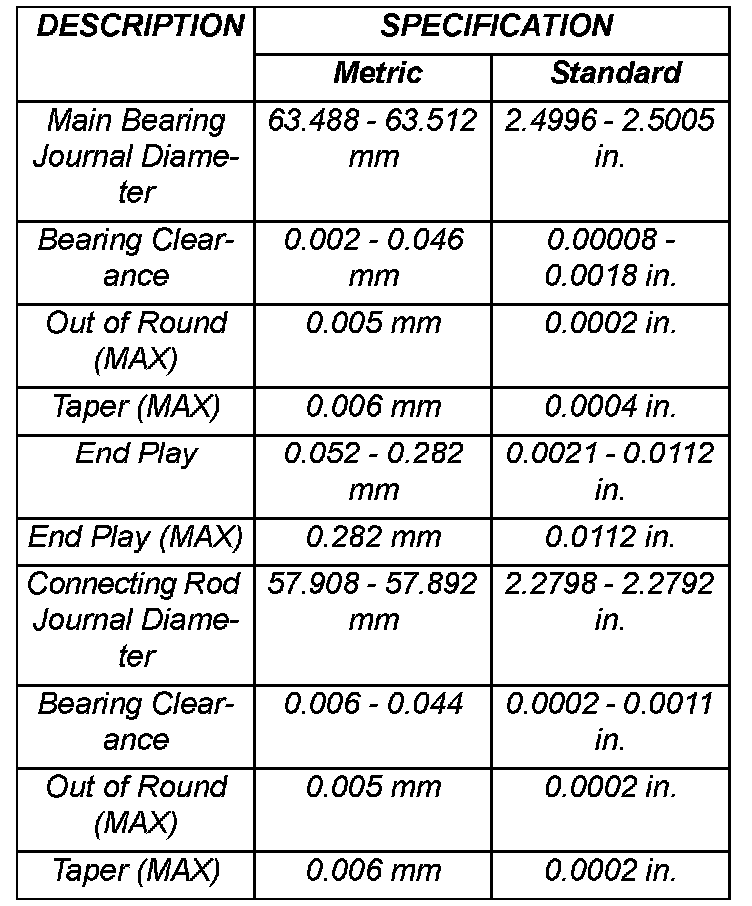

CRANKSHAFT

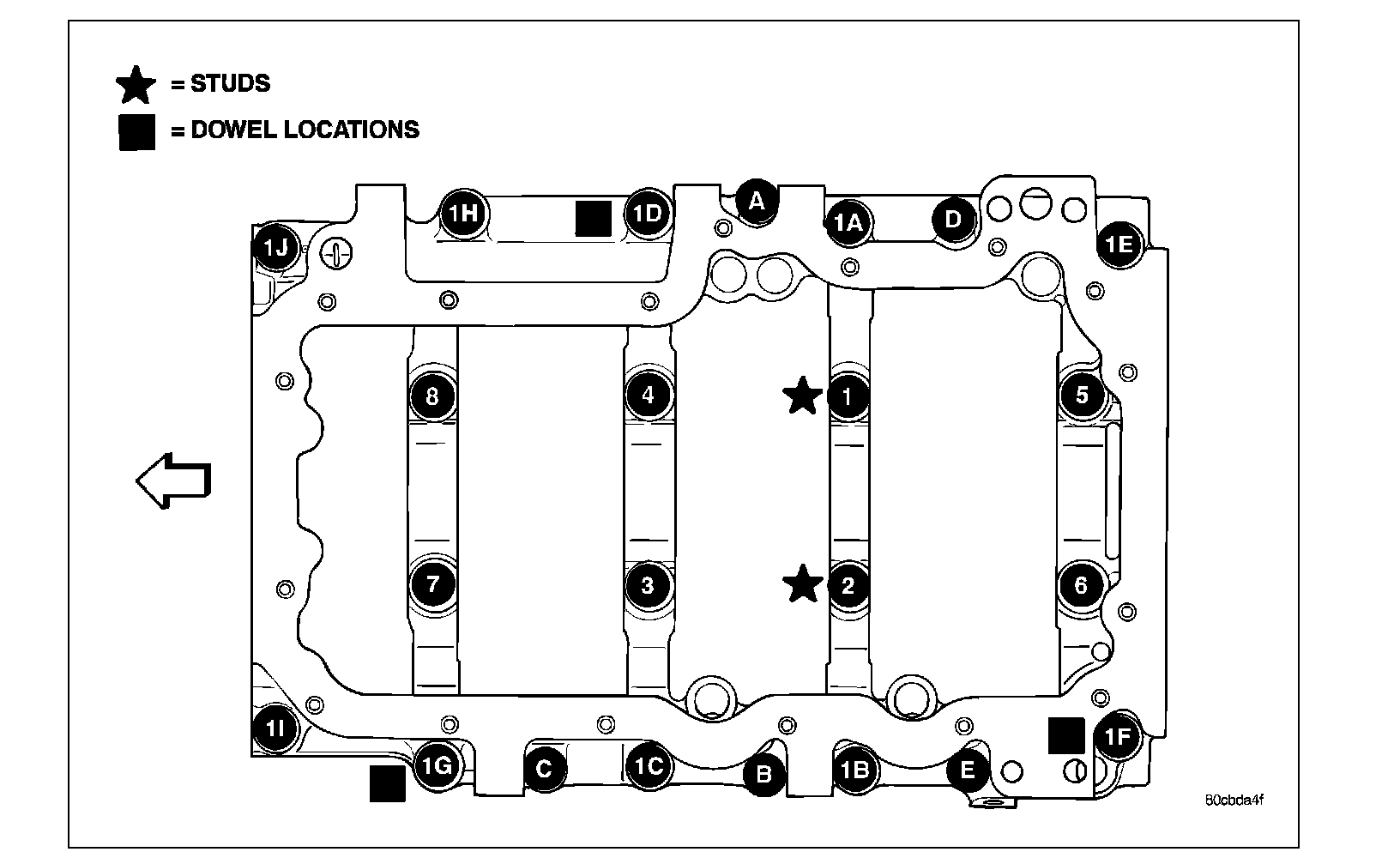

Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.
^ Hand tighten bolts 1D, 1G and 1F until the bed-plate contacts the block.
^ Tighten bolts 1A-1 54 Nm (40 ft. lbs.)
^ Tighten bolts 1-8 7 Nm (62 in. lbs.)
^ Turn bolts 1-8 an additional 90°
^ Tighten bolts A-E 27 Nm (20 ft. lbs.)

Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
