General Specifications

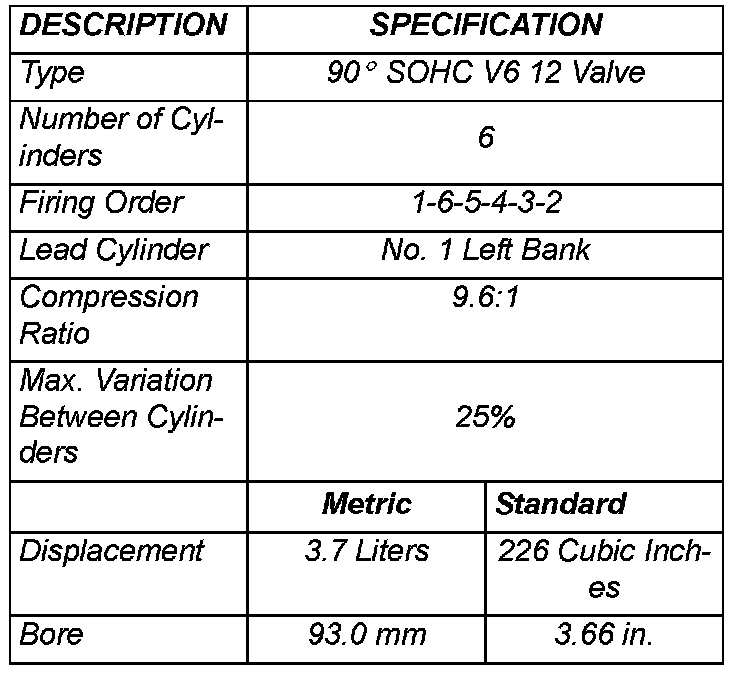

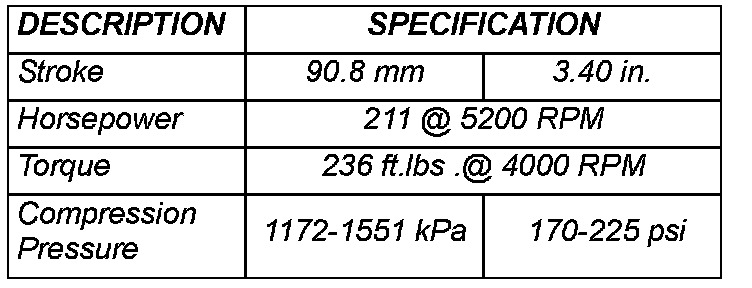

GENERAL SPECIFICATIONS








CYLINDER BLOCK





PISTONS

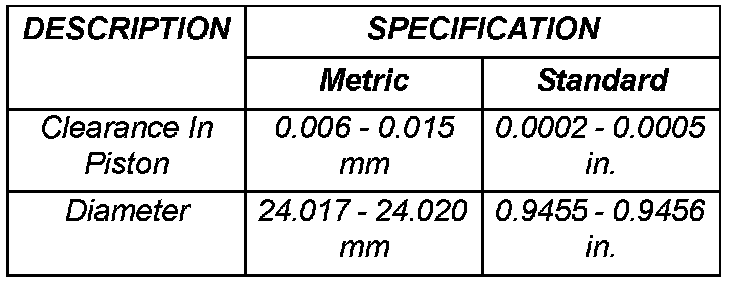

PISTON PINS





PISTON RINGS





CONNECTING RODS





CRANKSHAFT

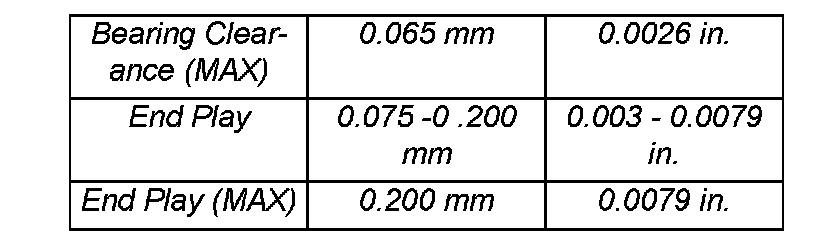

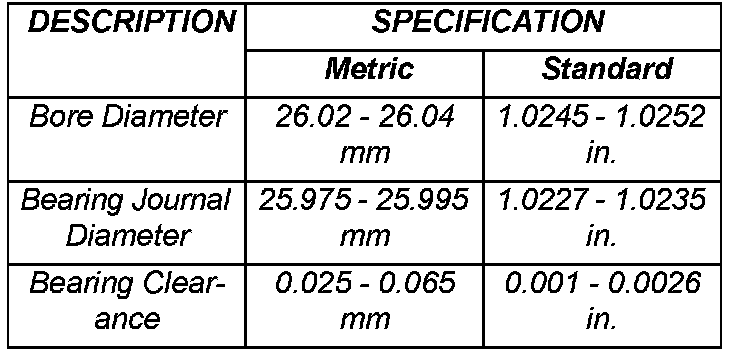

CAMSHAFT

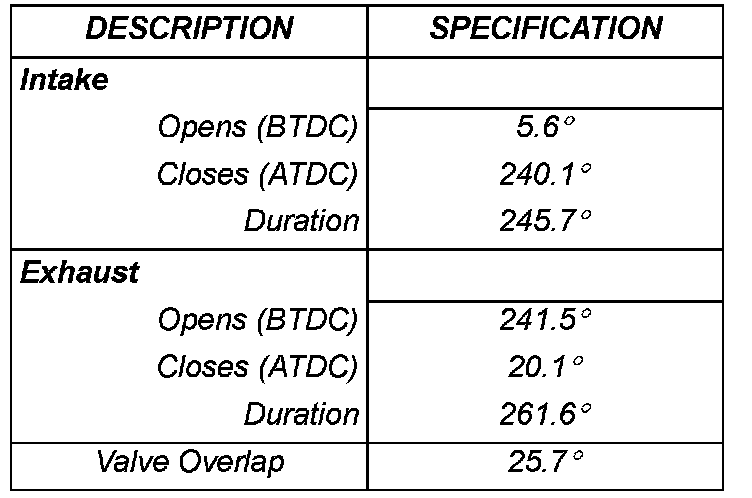

VALVE TIMING

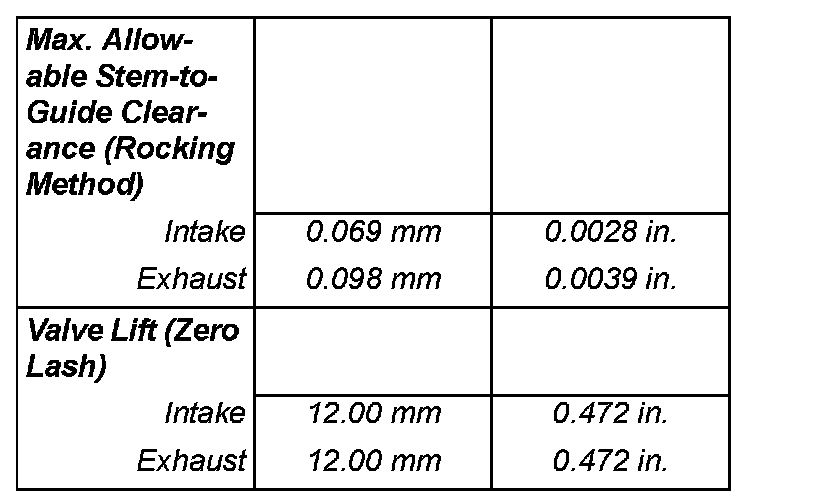

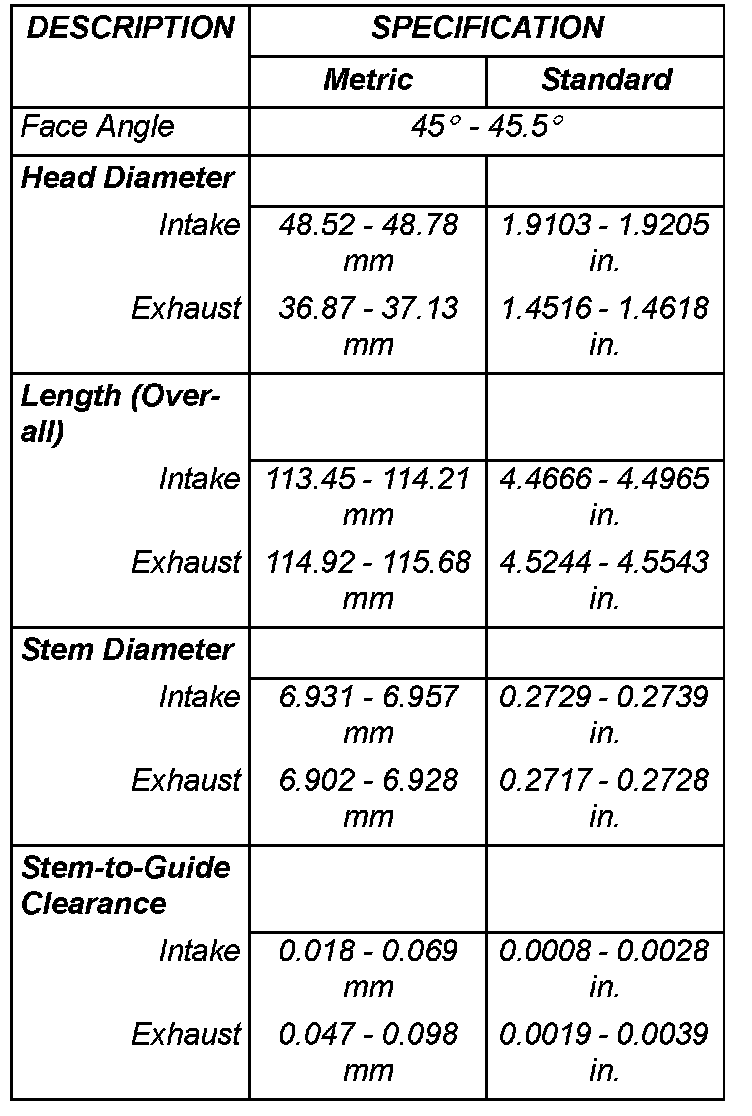

VALVES

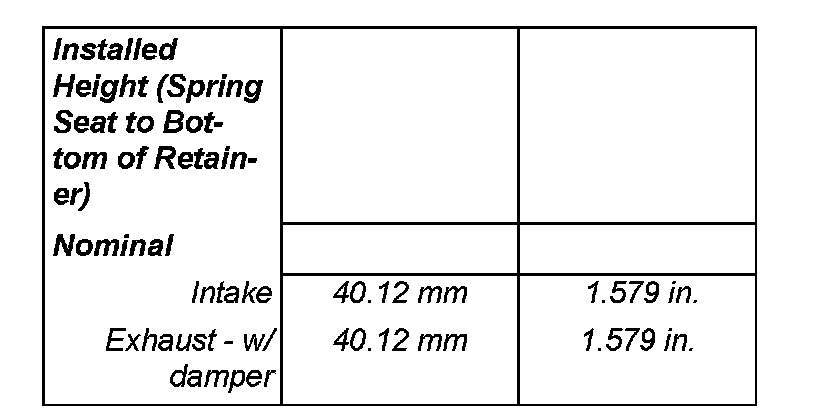

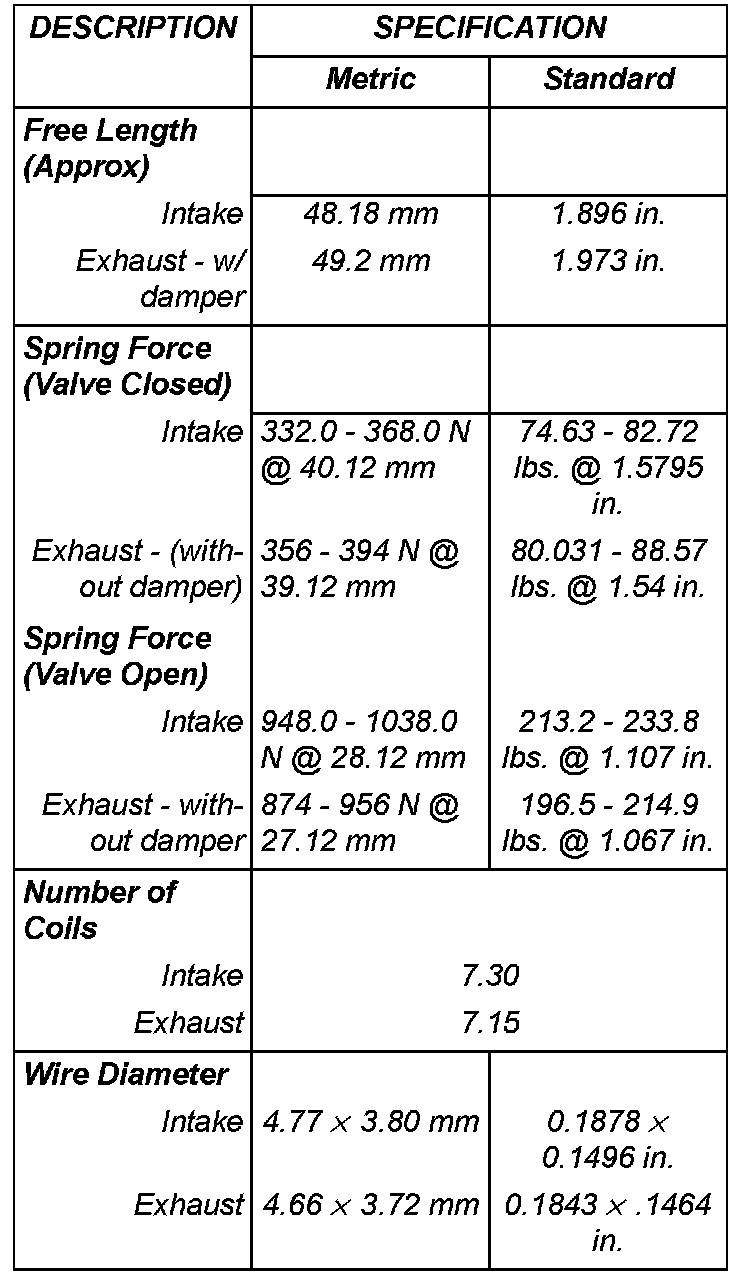

VALVE SPRING

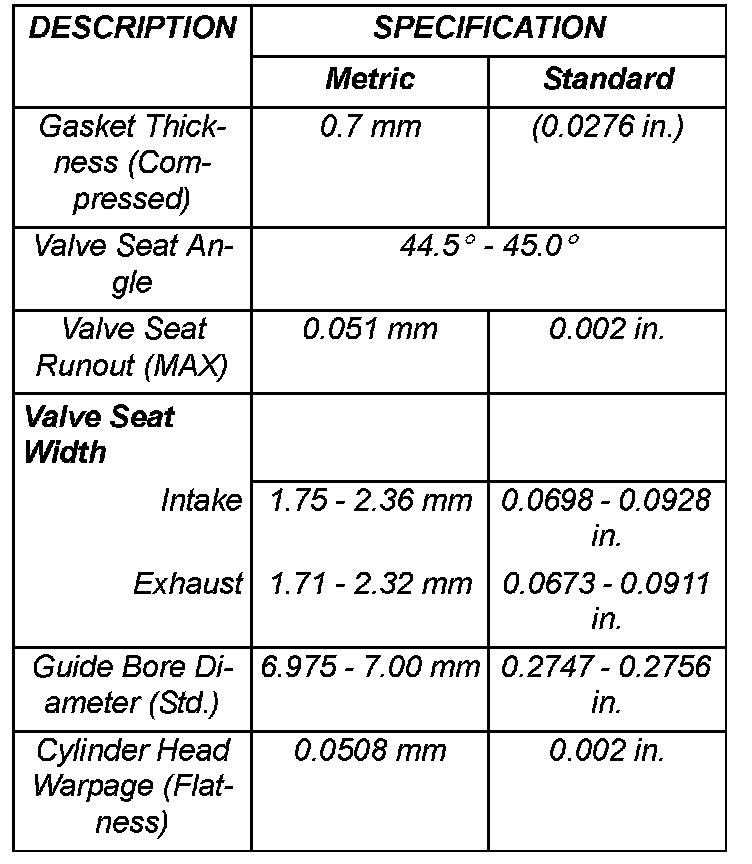

CYLINDER HEAD

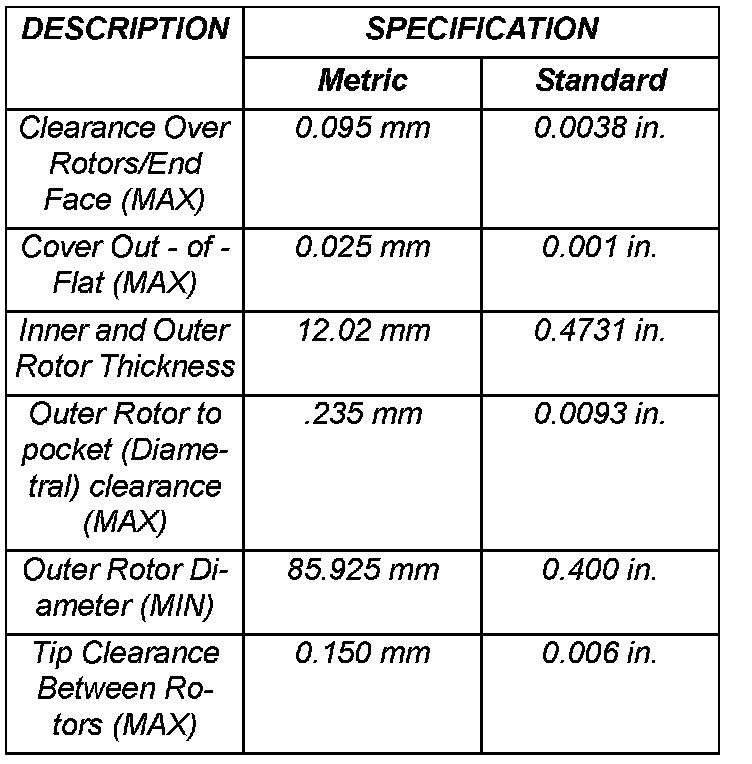

OIL PUMP

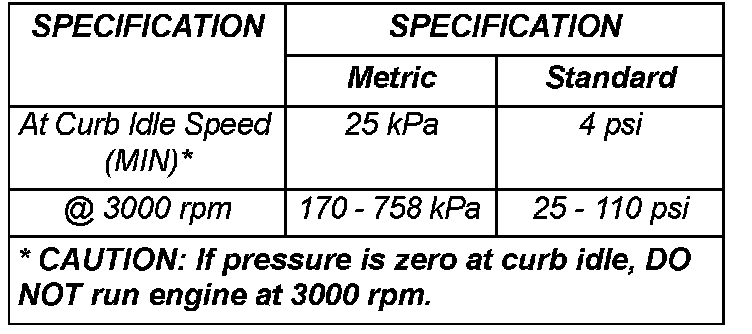

OIL PRESSURE
