System Specifications

Timing Chain Tensioner
Timing Chain Primary Tensioner Bolts 28 Nm (250 in. lbs.)

Crankshaft Damper
Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)

Timing Chain Cover

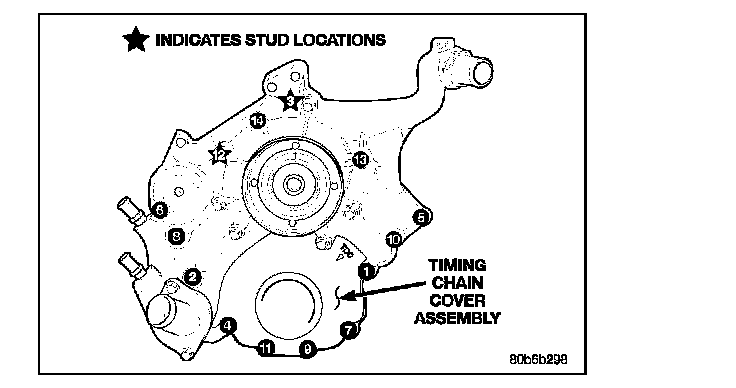

Install cover. Tighten fasteners in sequence as shown in to 58 Nm (43 ft. lbs.).
