Control Unit

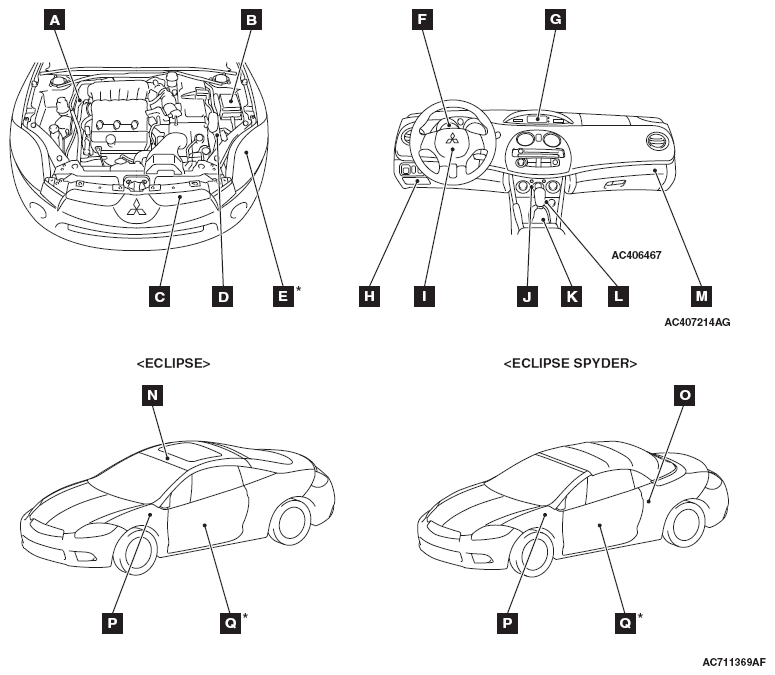

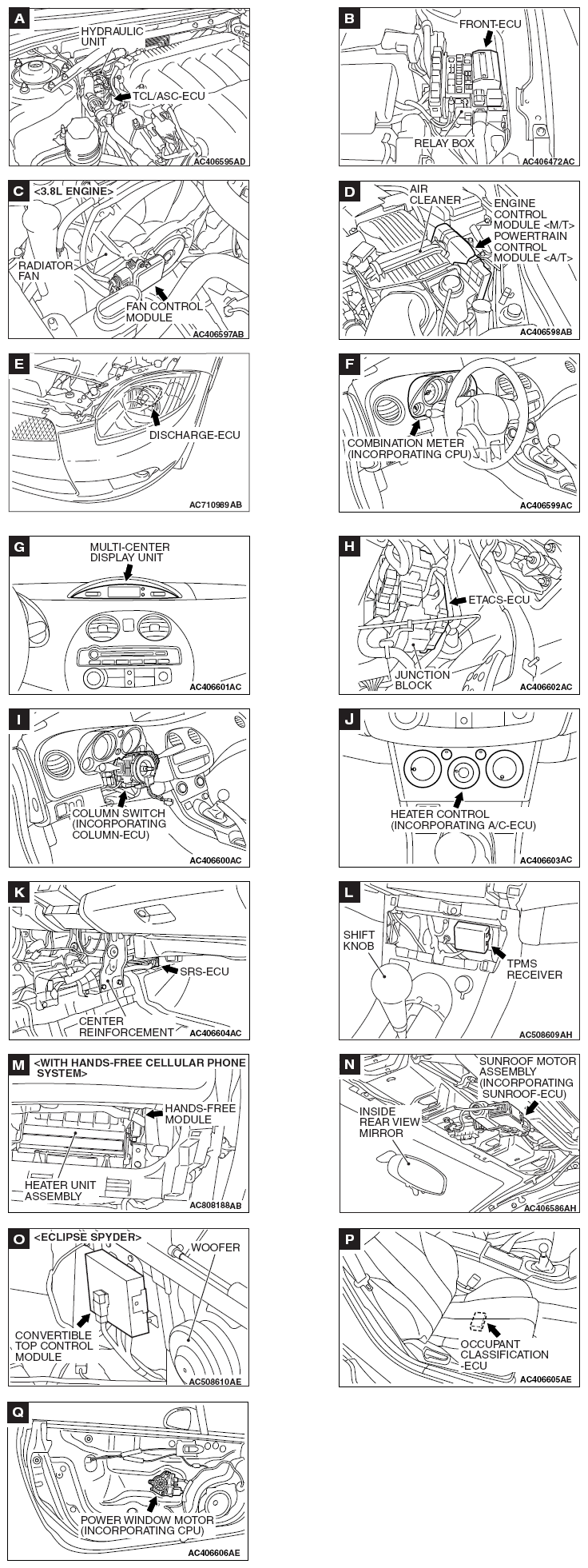

CONTROL UNIT SYMBOLS REFERENCE CHART
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| Column switch (incorporating column-ECU) | I | Heater control (incorporating A/C-ECU) | J |
| Combination meter (incorporating CPU) | F | Multi-center display unit | G |
| Convertible top control module < ECLIPSE SPYDER > | O | Occupant classification-ECU | P |
| Engine control module < M/T > | D | Powertrain control module < A/T > | D |
| ETACS-ECU | H | Power window motor (incorporating CPU) | Q |
| Fan control module < 3.8L Engine > | C | SRS-ECU | K |
| Front-ECU | B | Sunroof motor assembly (incorporating sunroof-ECU) | N |
| Hands-free module < Hands-free cellular phone system > | M | TCL/ASC-ECU | A |
| Headlight control unit < Discharge type headlight > | E | TPMS receiver | L |
NOTE:
The * symbols indicate equipped at both sides.
