Theft Protection

The mark in the illustration is stamped to replacement ports for the engine and the transaxle.

Fig 1: Identifying Replacement Part Mark
G06245365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

LOCATIONS

PARTS LABEL AREA CHART

LABEL AREA (B: FOR REPLACEMENT PARTS)
ENGINE<2.4L ENGINE>
G06687688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ENGINE <3.8L ENGINE>
G06687689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

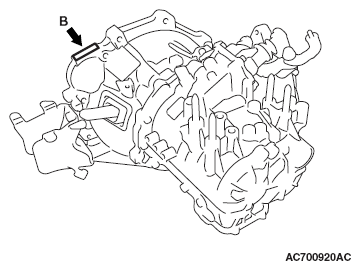

MANUAL TRANSAXLE < 5M/T >
G06687690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
MANUAL TRANSAXLE < 6M/T >
G06687691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

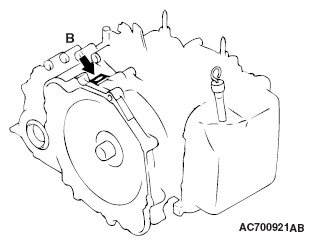

AUTOMATIC TRANSAXLE
G06687692Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
