INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL does not be Cancelled: Notes

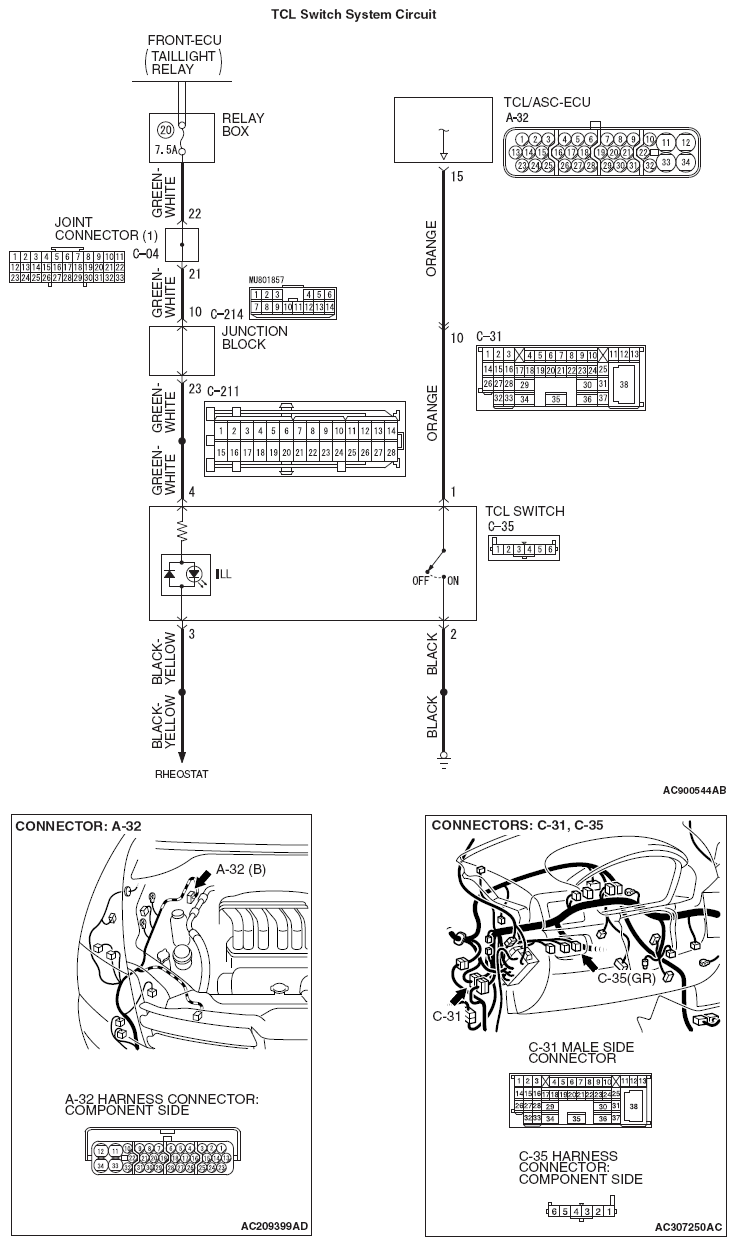

Fig 1: TCL Switch System Circuit
G06699122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
