Removal And Installation

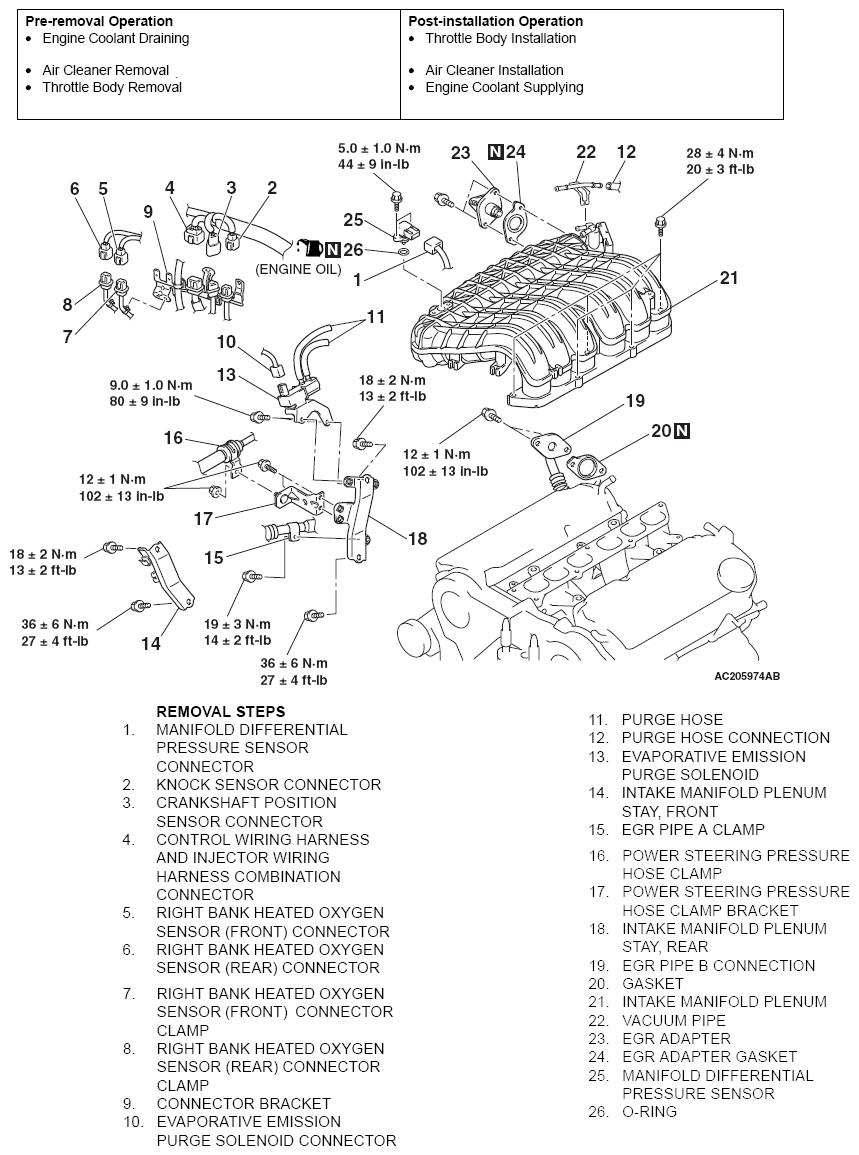

Fig 1: Intake Manifold Plenum Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
