VIN Code Registration Procedure For ETACS-Ecu.

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: V. C. I.
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Select "System select."
   Fig 2: Screen Display - System Select

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Choose "From 2006."
   Fig 3: Screen Display - Choose From 2006

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Enter the VIN code of the vehicle that is being registered. Then, press "OK" button.
   Fig 4: Screen Display - VIN Code

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Select "IMMOBILIZER."
   Fig 5: Screen Display - Select "IMMOBILIZER."

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Select "Coding."
   Fig 6: Screen Display - Select "Coding."

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Select "Chassis No/VIN Writing."

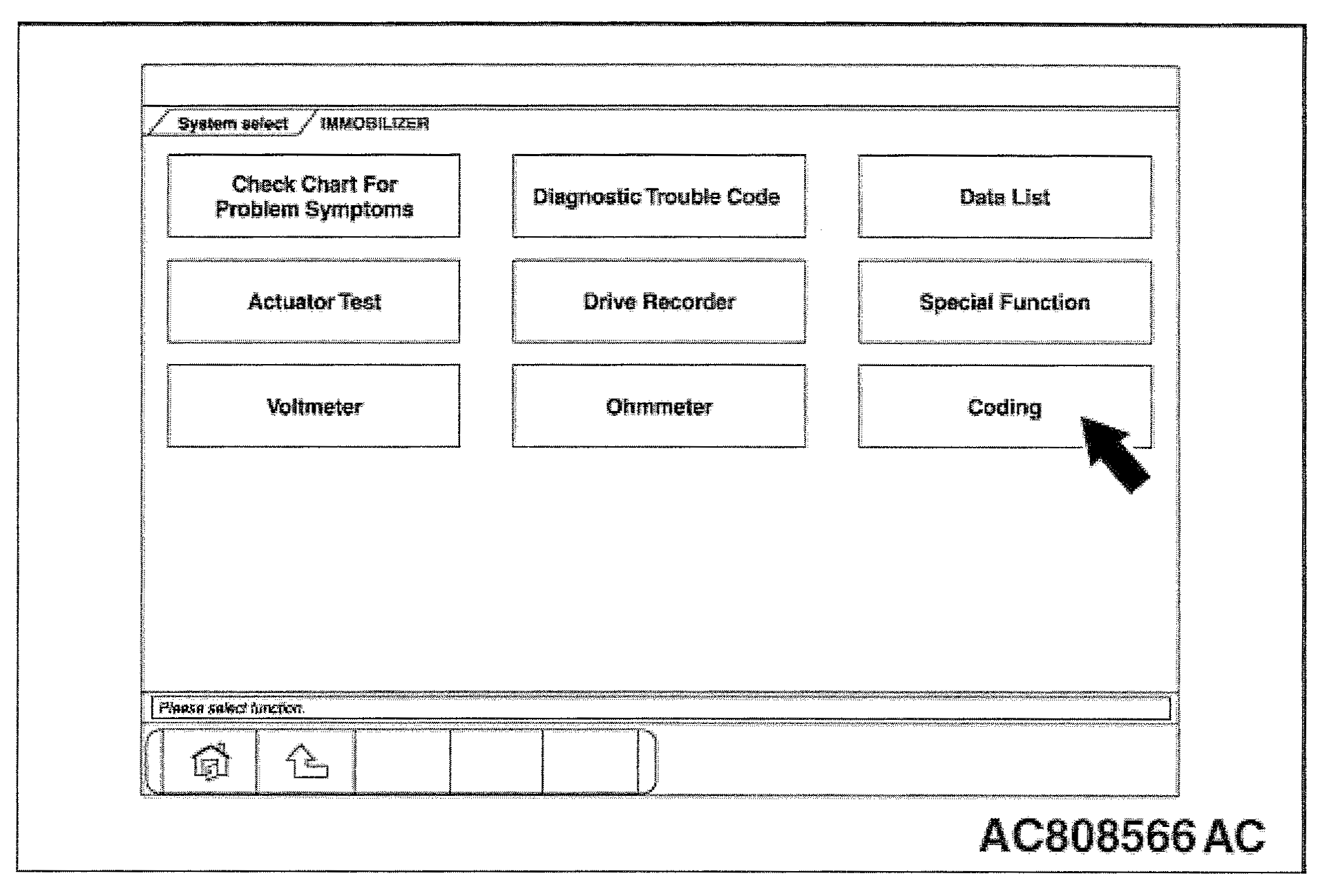

   Fig 7: Screen Display - Select "Chassis No/VIN Writing."

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Enter the VIN code (all 17 characters) of the vehicle that is being registered. Then, press "OK" button.
10. When the execution confirmation menu of the VIN writing is displayed, press the OK button.

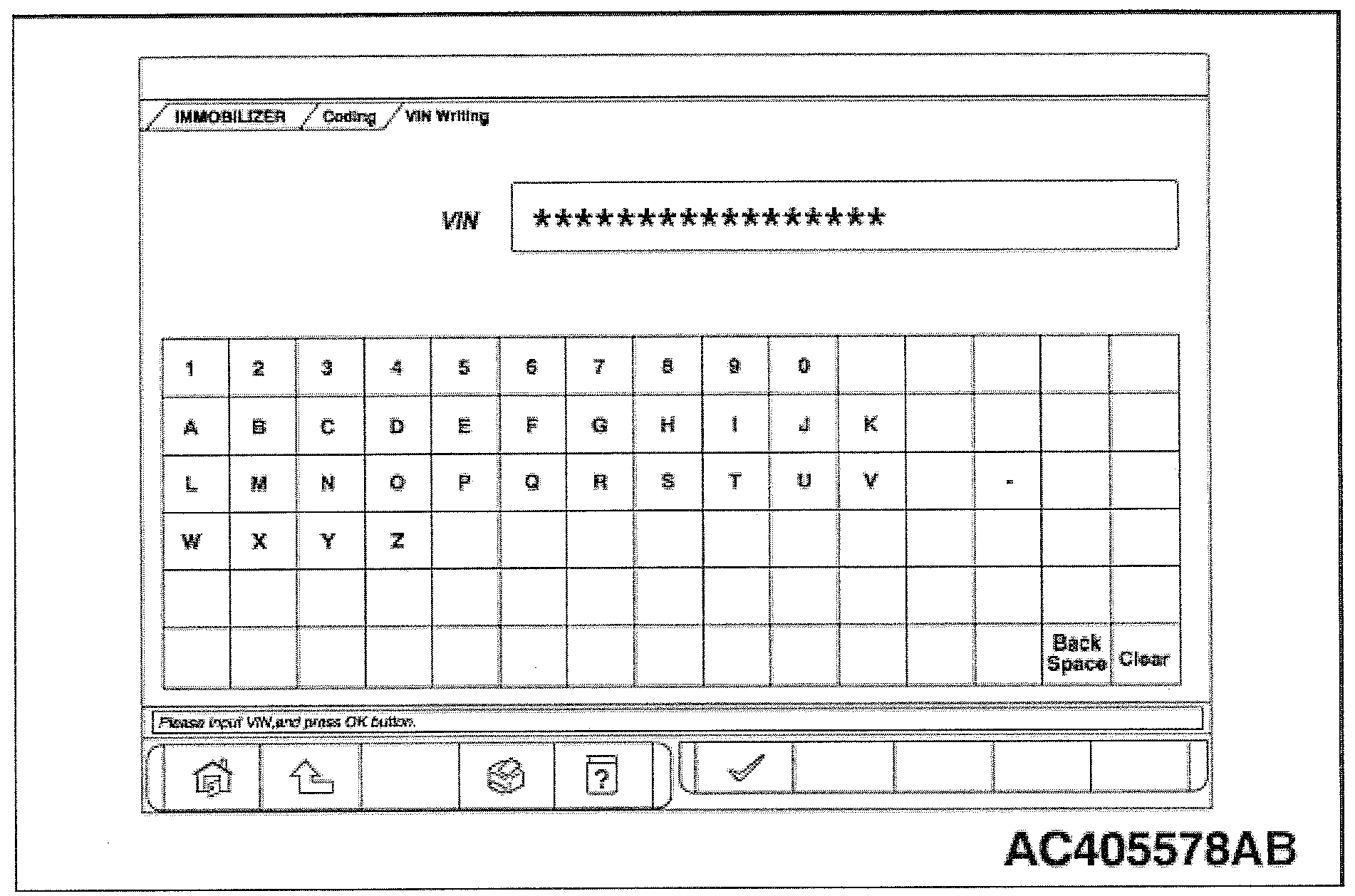

    Fig 8: Screen Display - VIN Code

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. When the VIN writing completion menu is displayed, press the OK button.
    Fig 9: Screen Display - VIN Writing Completed

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
12. The results of VIN writing are displayed.
13. Register the encrypted code. (Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE .)
14. Register the remote keyless entry transmitters. (Refer to HOW TO REGISTER SECRET CODE .)

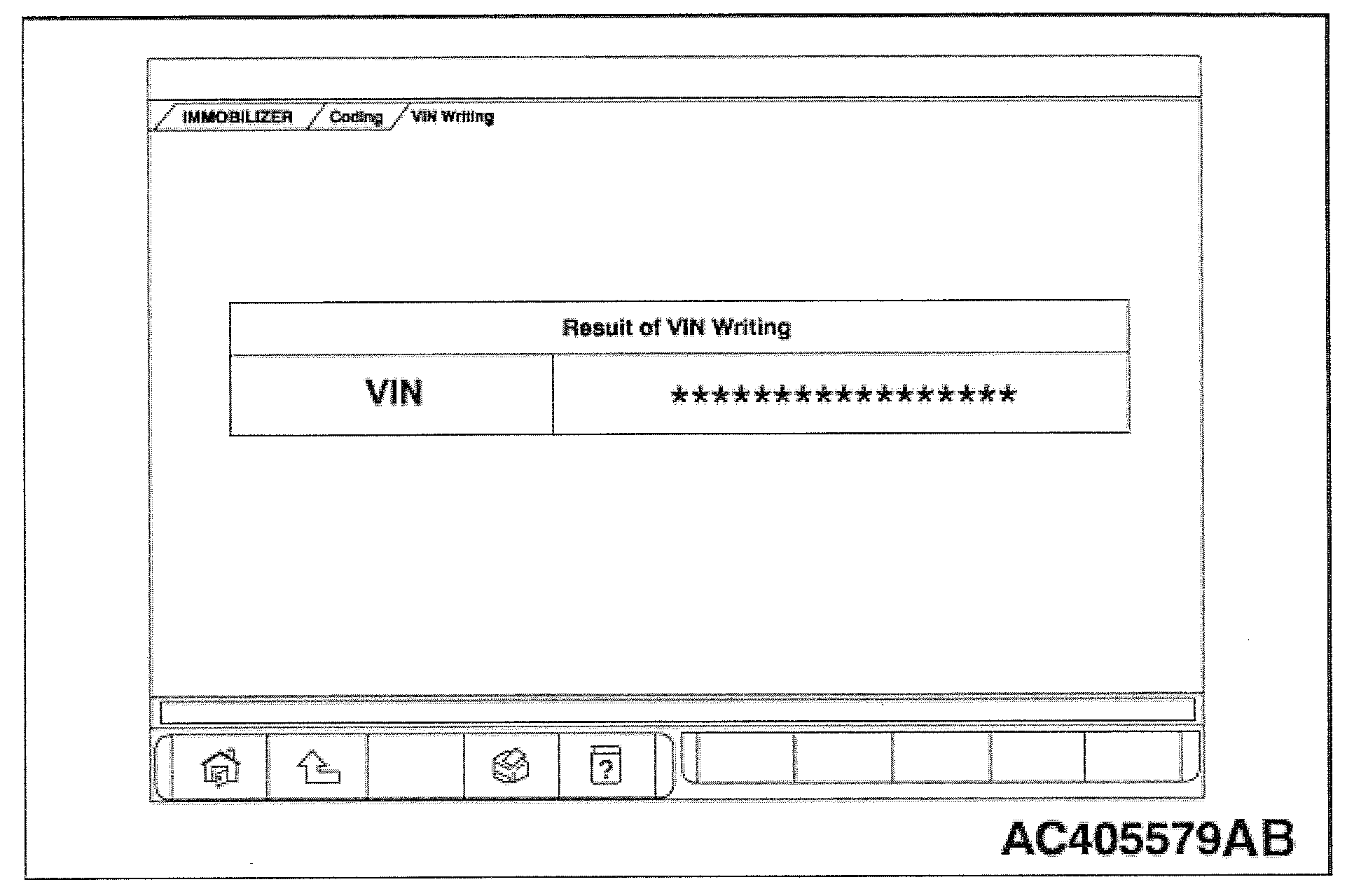

    Fig 10: Screen Display - VIN Writing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
