Removal And Installation <2.4L Engine>: Notes

WARNING: This page is about a different variant/trim than selected.

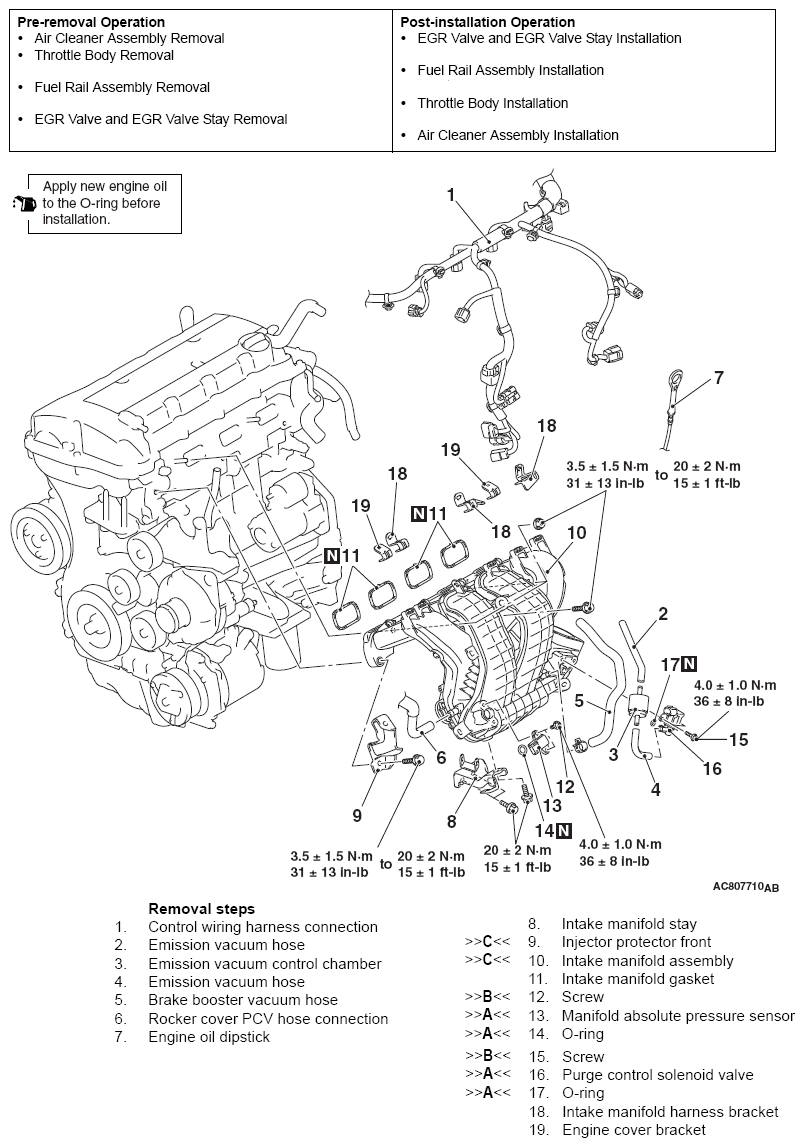

Fig 1: Intake Manifold Replacement Components With Torque Specifications - 2.4L Engine
G06470986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
