REMOVAL AND INSTALLATION <2.0 L Engine>: Notes

WARNING: This page is about a different variant/trim than selected.

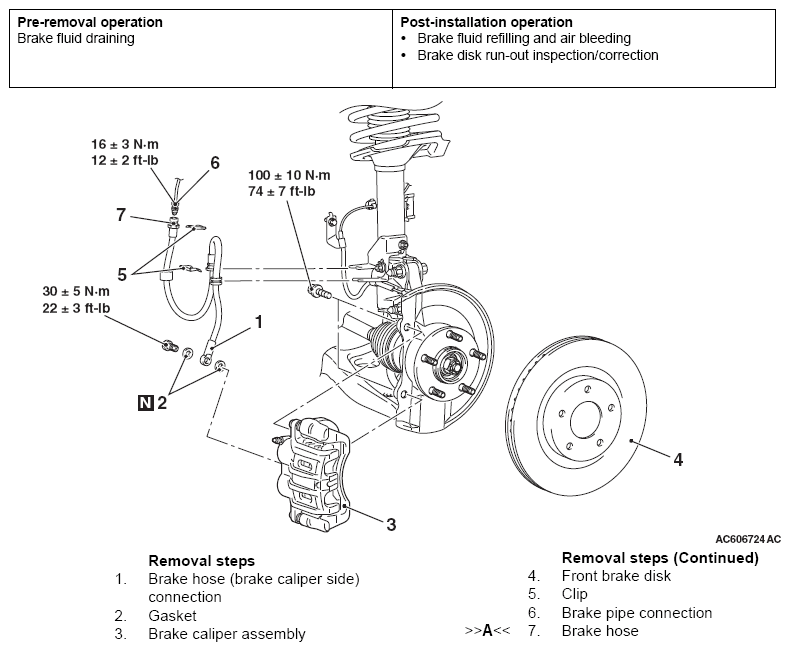

Fig 1: Exploded View Of Front Disc Brake Assembly With Torque Specifications - 2.0 L Engine
G06472325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
