CVT Control Component Layout

SYMBOL CHART

Name Symbol Name Symbol
Accelerator pedal position sensor K Primary pulley speed sensor E
CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor) F Secondary pulley speed sensor B
CVT control relay C Shift lock solenoid L
Crankshaft position sensor A Shift switch assembly L
Data link connector I Stoplight switch J
Paddle shift switch H TCM G
    Transmission range switch D

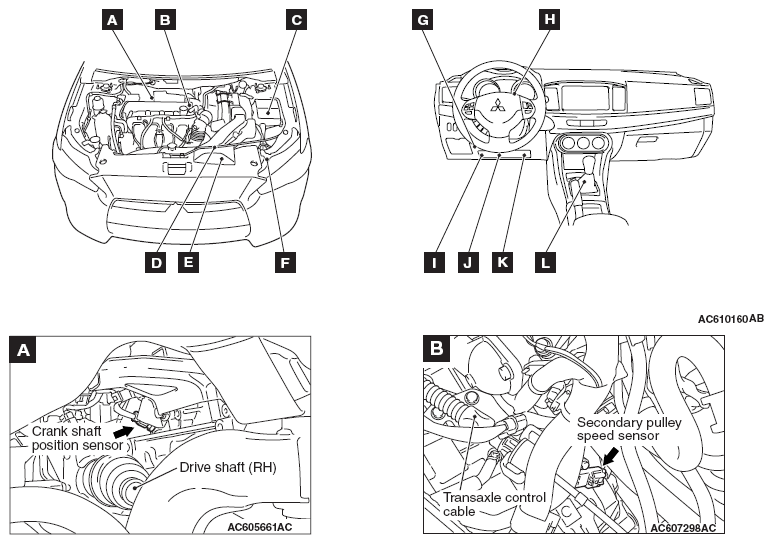

Fig 1: Identifying CVT Control Component Location (1 Of 2)
G06471647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

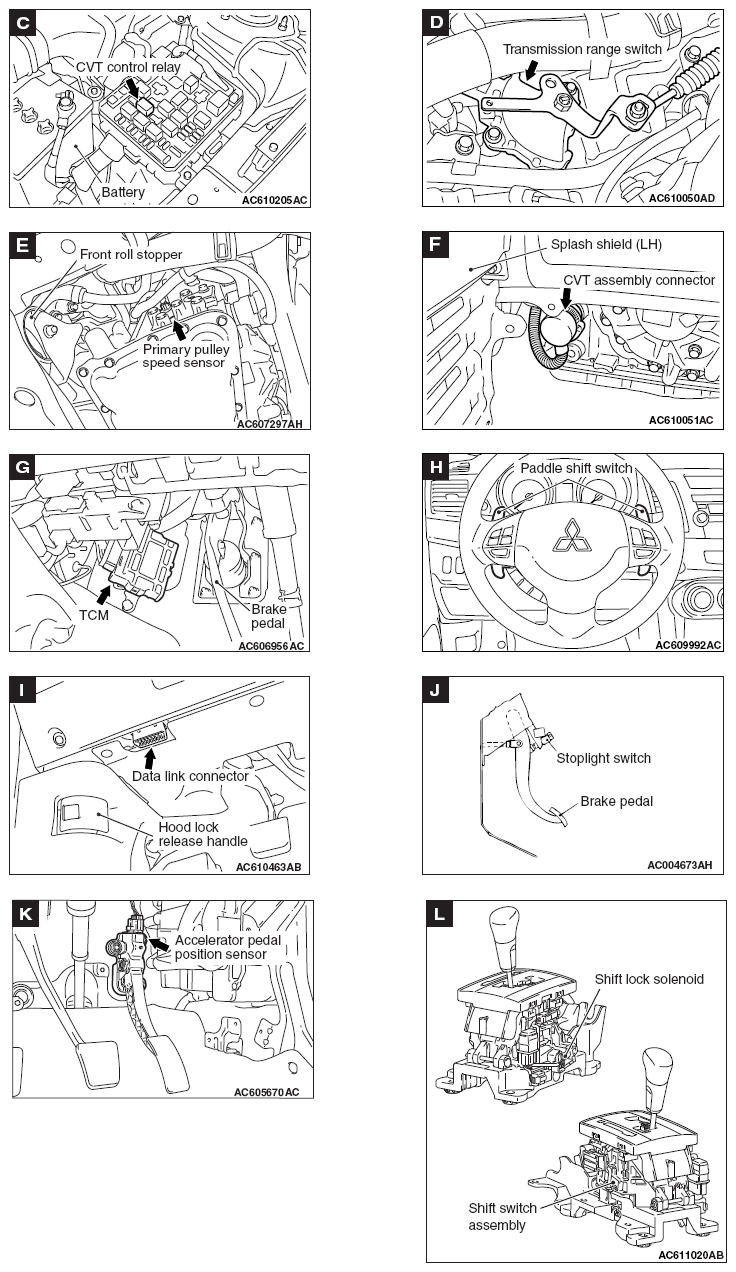

Fig 2: Identifying CVT Control Component Location (2 Of 2)
G06471648Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
