Differential Sub-Assembly: Assembly: Notes

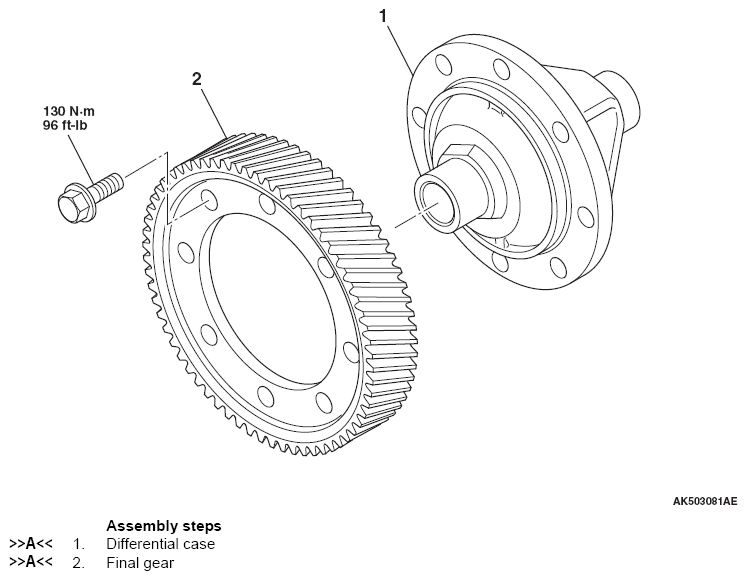

Fig 1: Differential Case And Final Gear With Torque Specifications
G06672454Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: The differential sub-assembly can only be assembled, not disassembled.
