DTC 22: Stoplight Switch System: Notes

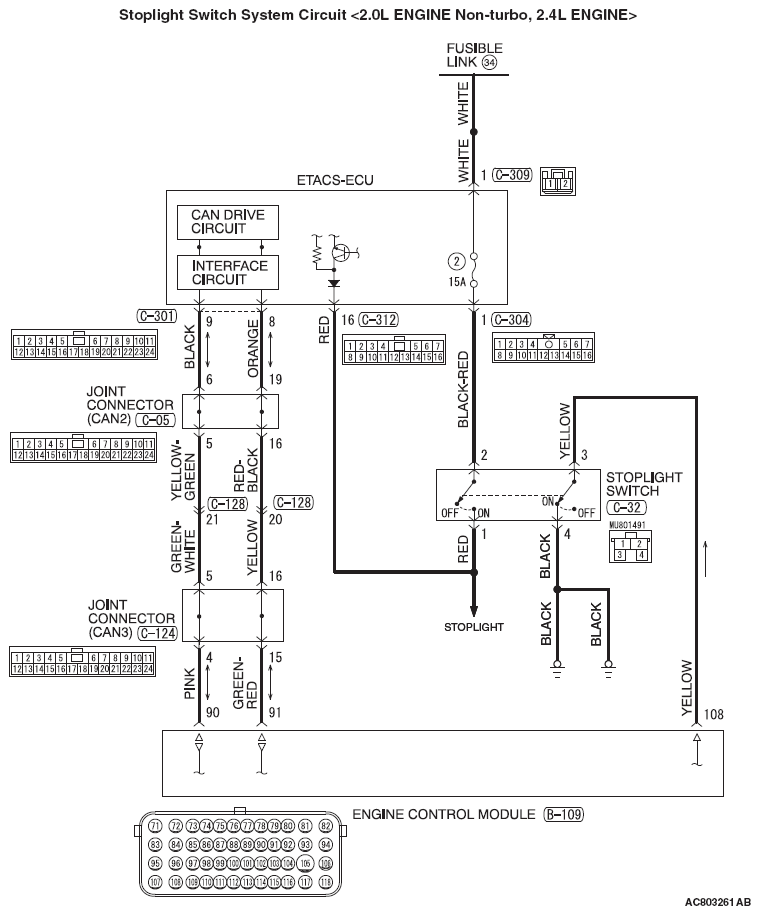

Fig 1: Stoplight Switch System Circuit (2.0L ENGINE Non-turbo, 2.4L ENGINE)
G06668550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

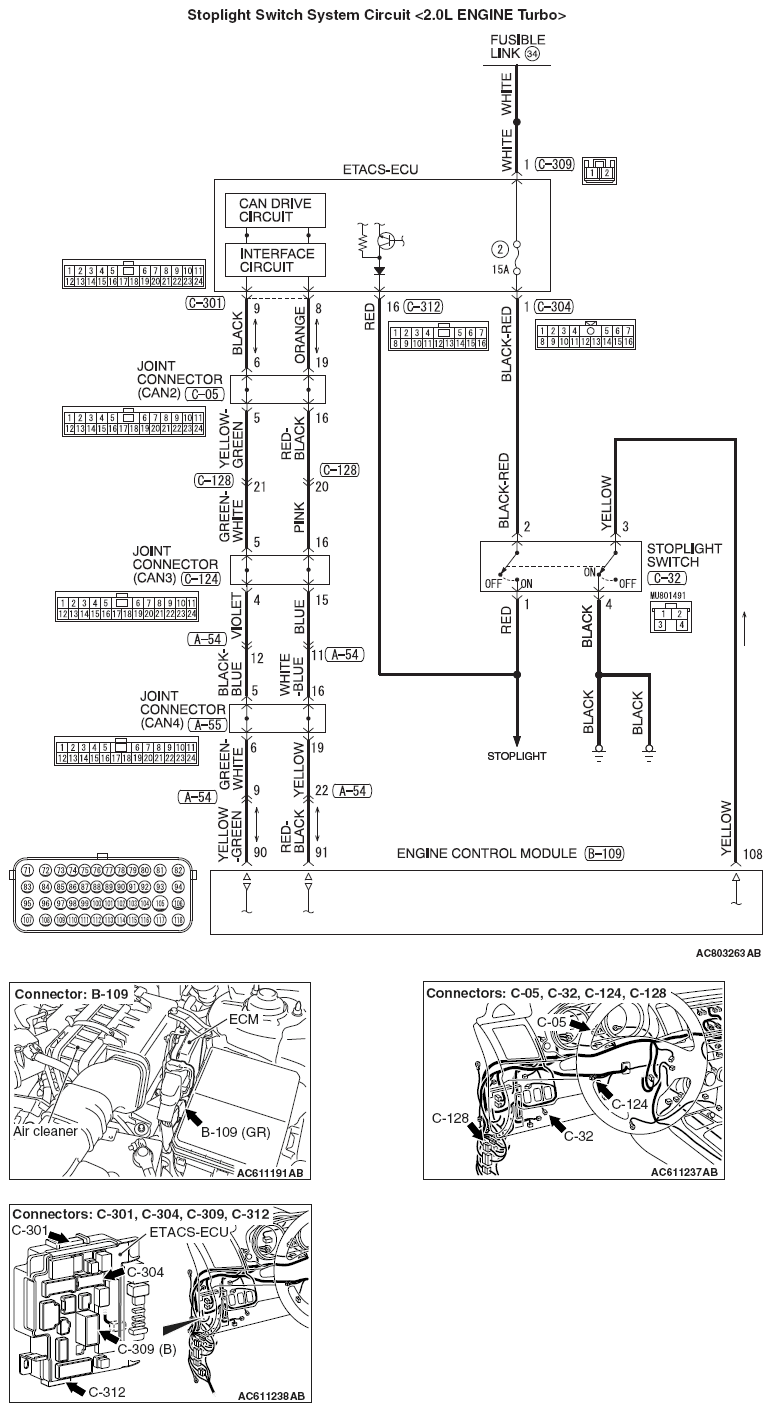

Fig 2: Stoplight Switch System Circuit (2.0L ENGINE Turbo)
G06668551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
