>>A<< Dynamic Damper (RH)/Damper Band (RH)/ETJ Boot Installation
CAUTION:
There should be no grease adhered to the rubber part of the dynamic damper.

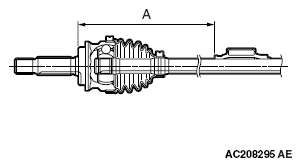

- Install the dynamic damper in the position (A) shown in the illustration.
A: 426 ± 3 mm (16.77 ± 0.12 inches)
- Secure the damper band.
- Wrap plastic tape around the shaft spline, and then install the ETJ boot band (small) and ETJ boot.
