>>C<< Tie-Rod End/Jam Nut Installation

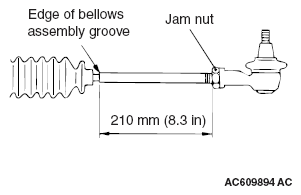

Screw in the tie-rod to the length shown in the illustration, and hand-tighten the jam nut.

NOTE: Install the steering gear and linkage to the body, adjust the toe-in, and then tighten the jam nut to the specified torque.
Fig 1: Identifying Tie-Rod Length
G06673033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
