<<C>> Engine Assembly Supporting

  1. Remove the vacuum pipe assembly (Refer to WATER HOSE AND WATER PIPE ), and install the engine hanger plate (special tool: MB992201) to the position as shown in the illustration.
  2. <When engine hanger (Special tool: MB991928) is used>
    1. Assemble the engine hanger (Special tool: MB991928). (Set the components below to the base hanger.)
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (90) (MB991930)

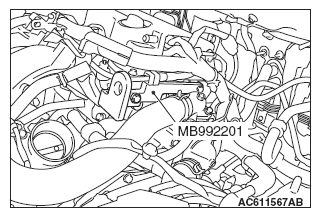

        Fig 1: Identifying Engine Hanger Plate On Engine Assembly
        G06672045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Set the feet of the special tool as shown in the illustration.
      NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

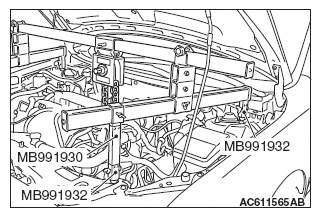

      Fig 2: Lifting Engine With Special Tool (1 Of 4)
      G06672046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

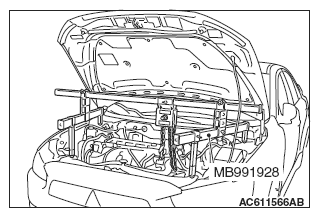

      Fig 3: Lifting Engine With Special Tool (2 Of 4)
      G06672047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. <When using engine mechanical hanger (Special tool: MB991895)>
    1. Set the foot of the engine mechanical hanger (Special tool: MB991895) as shown in the illustration.
      NOTE: Slide the front foot of the engine mechanical hanger (Special tool: MB991895) to balance the engine hanger.

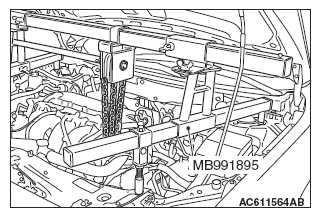

      Fig 4: Lifting Engine With Special Tool (3 Of 4)
      G06672048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

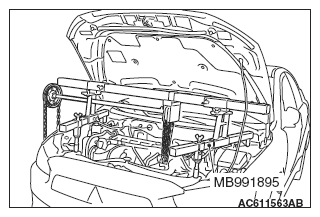

      Fig 5: Lifting Engine With Special Tool (4 Of 4)
      G06672049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
