>>A<< Rivets Installation
WARNING: This page is about a different variant/trim than selected.

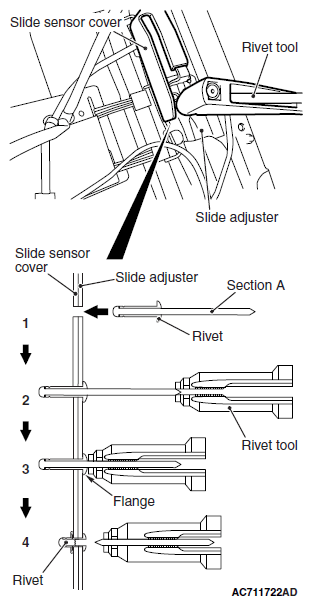

Rivet the slide sensor cover to the slide adjuster according to the procedure below.
- Insert the rivets into the slide sensor cover and slide adjuster.
- Insert "A" of the rivet into the rivet tool.
- Pressing the flange surface of the rivet, move the handle of the rivet tool.
- The thinnest point of "A" is cut and the rivet is held in the position.
