Removal And Installation

WARNING: This page is about a different variant/trim than selected.
WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

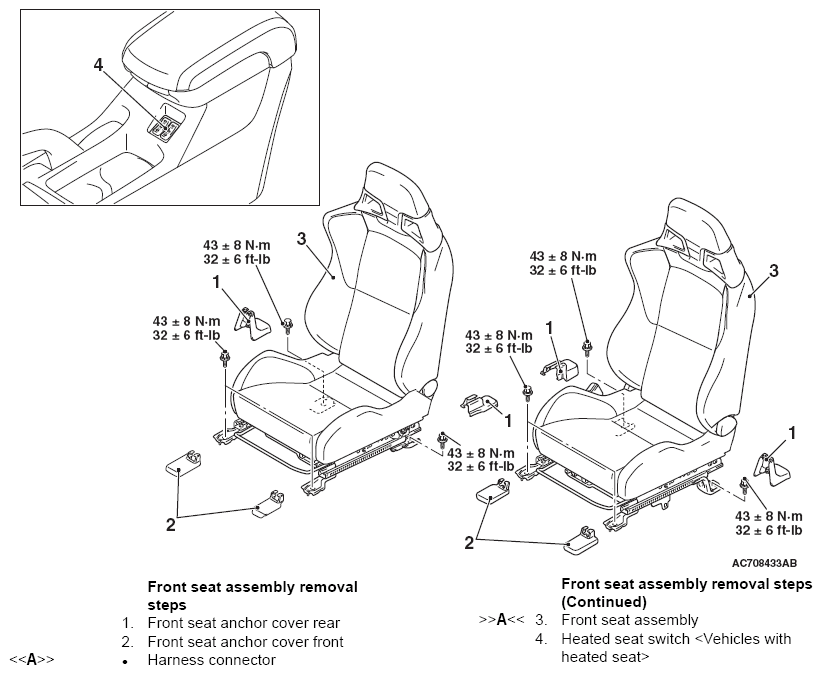

Fig 1: Removal And Installation Of Front Seat Assembly With Torque Specifications
G06677990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
