DTC U0169: Sunroof LIN timeout <Vehicles with sunroof>: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

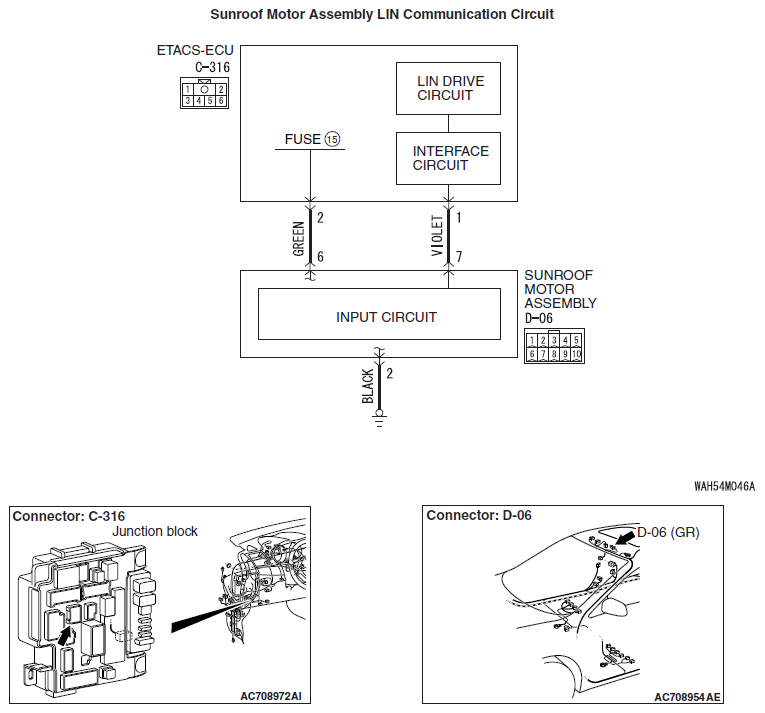

Fig 1: Sunroof Motor Assembly LIN Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
