DIAGNOSTIC ITEM 23: Diagnose when the scan tool cannot receive the data sent by hands free module: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

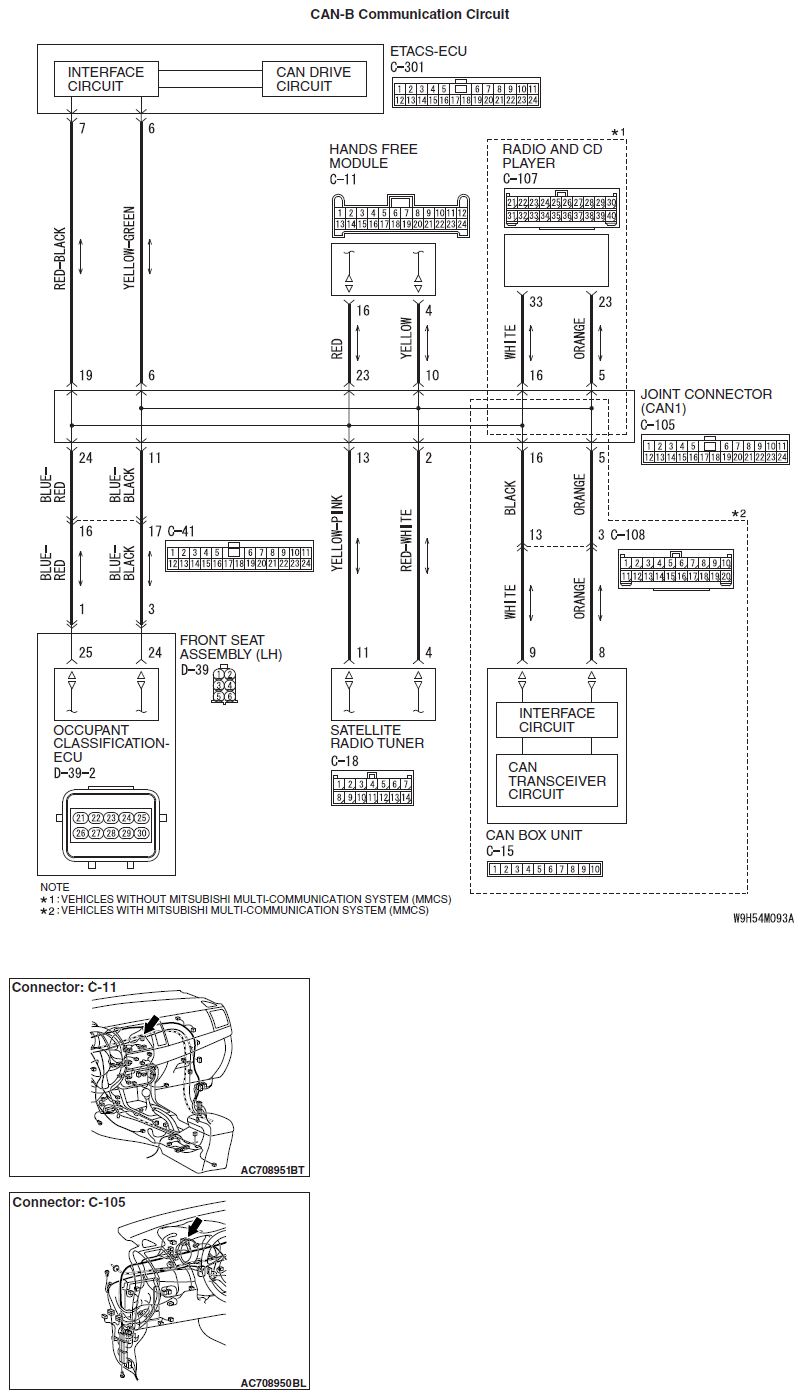

Fig 1: CAN-B Communication Circuit
G06678860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
