Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE(S) <Except for RALLIART> SIDE-AIRBAG MODULE(S) <RALLIART>.

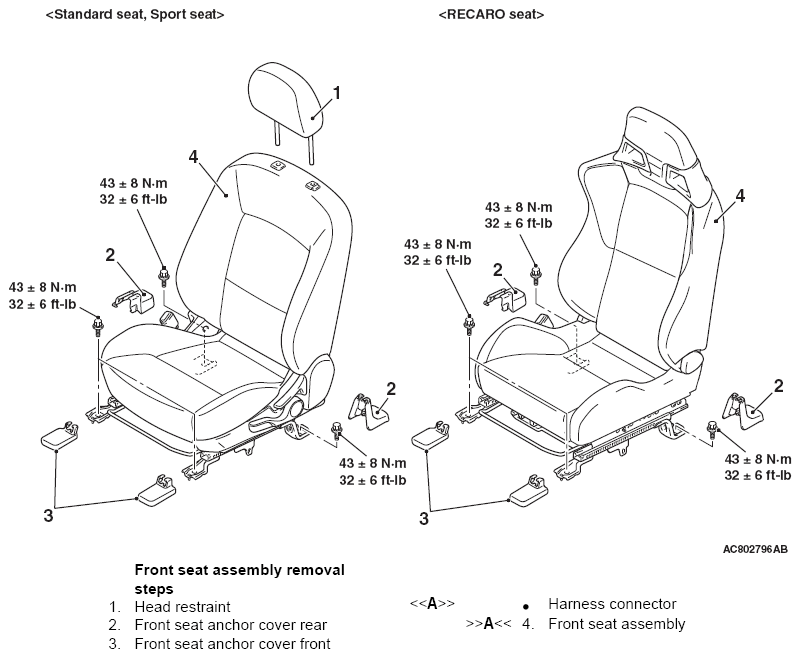

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
