Removal And Installation: Notes

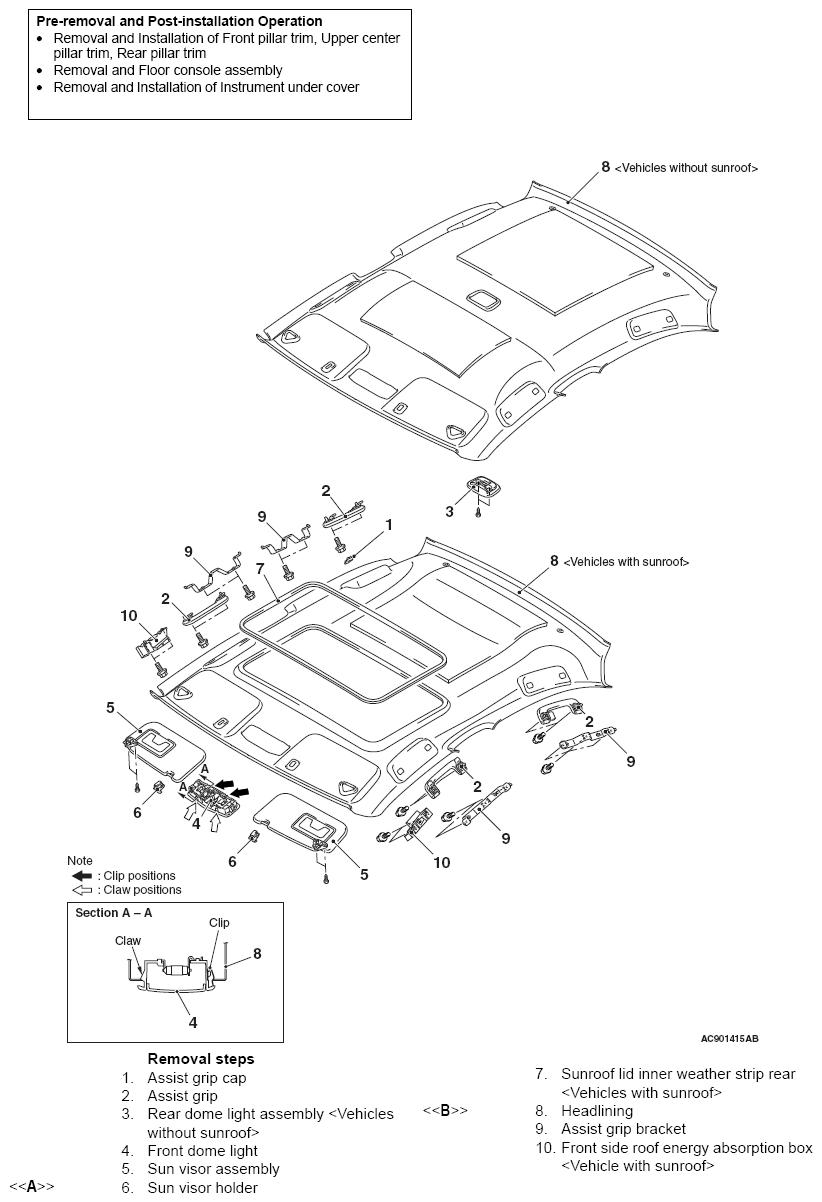

Fig 1: Identifying Headlining Components
G06673282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
