Registration flow chart

WARNING: This page is about a different variant/trim than selected.

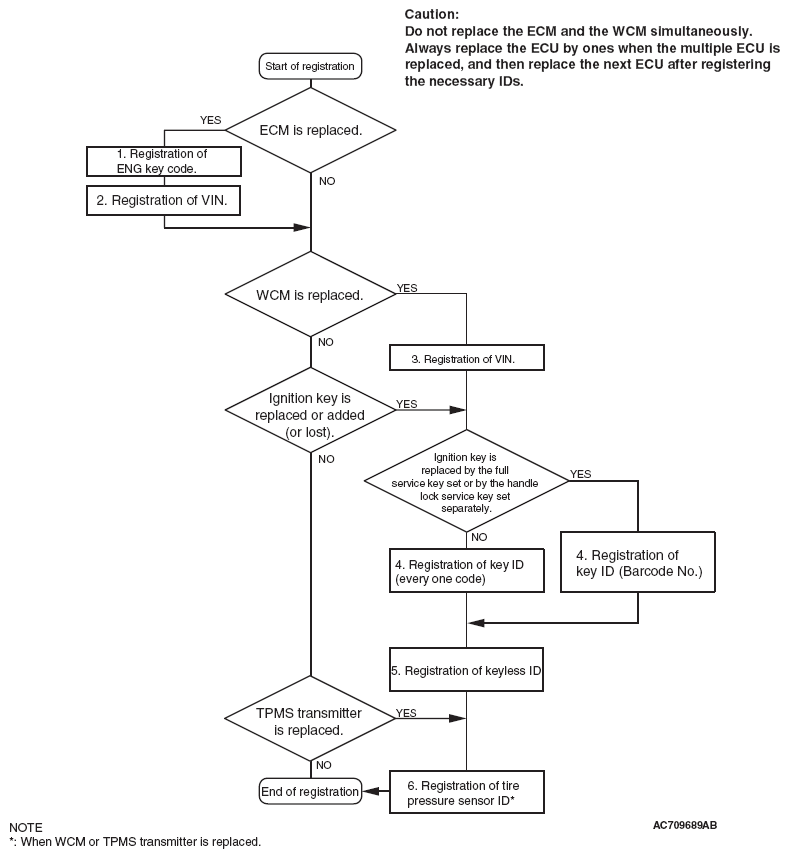

Fig 1: Wireless Control Module - Registration Flow Chart
G06666144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
