Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When WCM has been replaced, all key ID codes should be registered, referring to the ID CODE REGISTRATION JUDGMENT TABLE  .

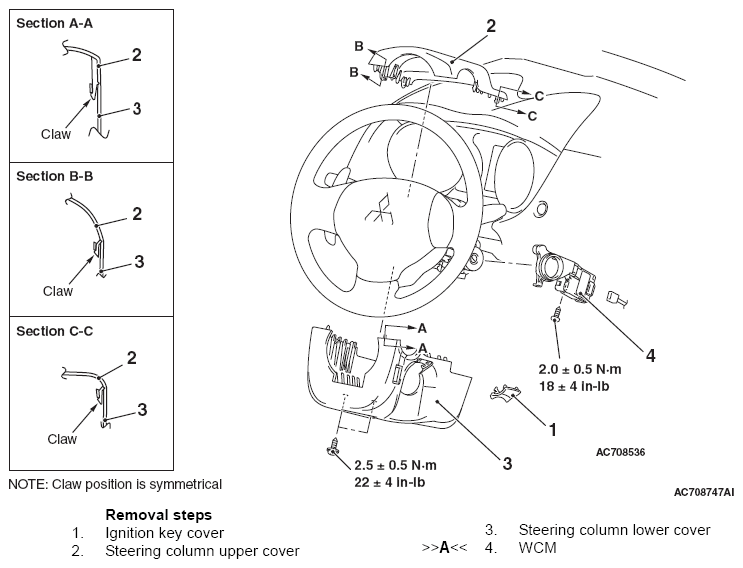

Fig 1: Wireless Control Module Replacement Components With Torque Specifications
G06666208Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
