OEM Component Locations - Lancer Evolution: Sensor

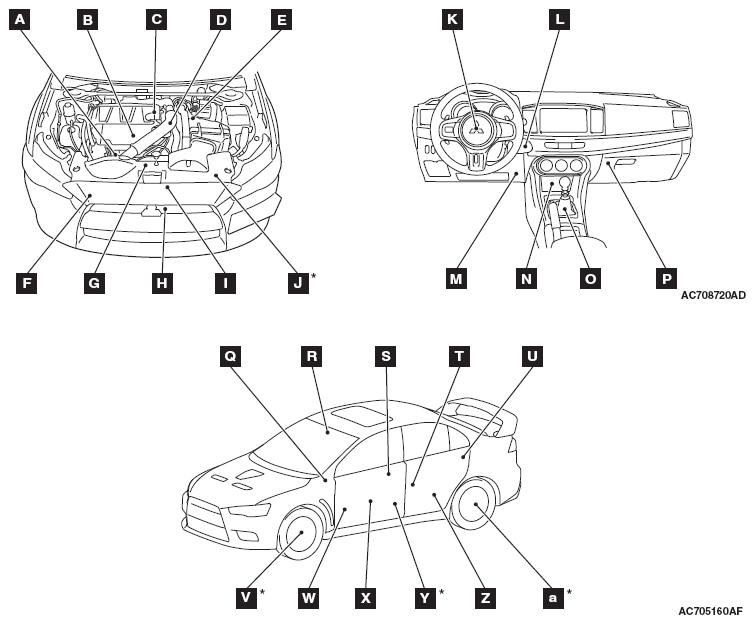

SENSOR SYMBOLS REFERENCE CHART
| Name | Symbol | Name | Symbol |
|---|---|---|---|

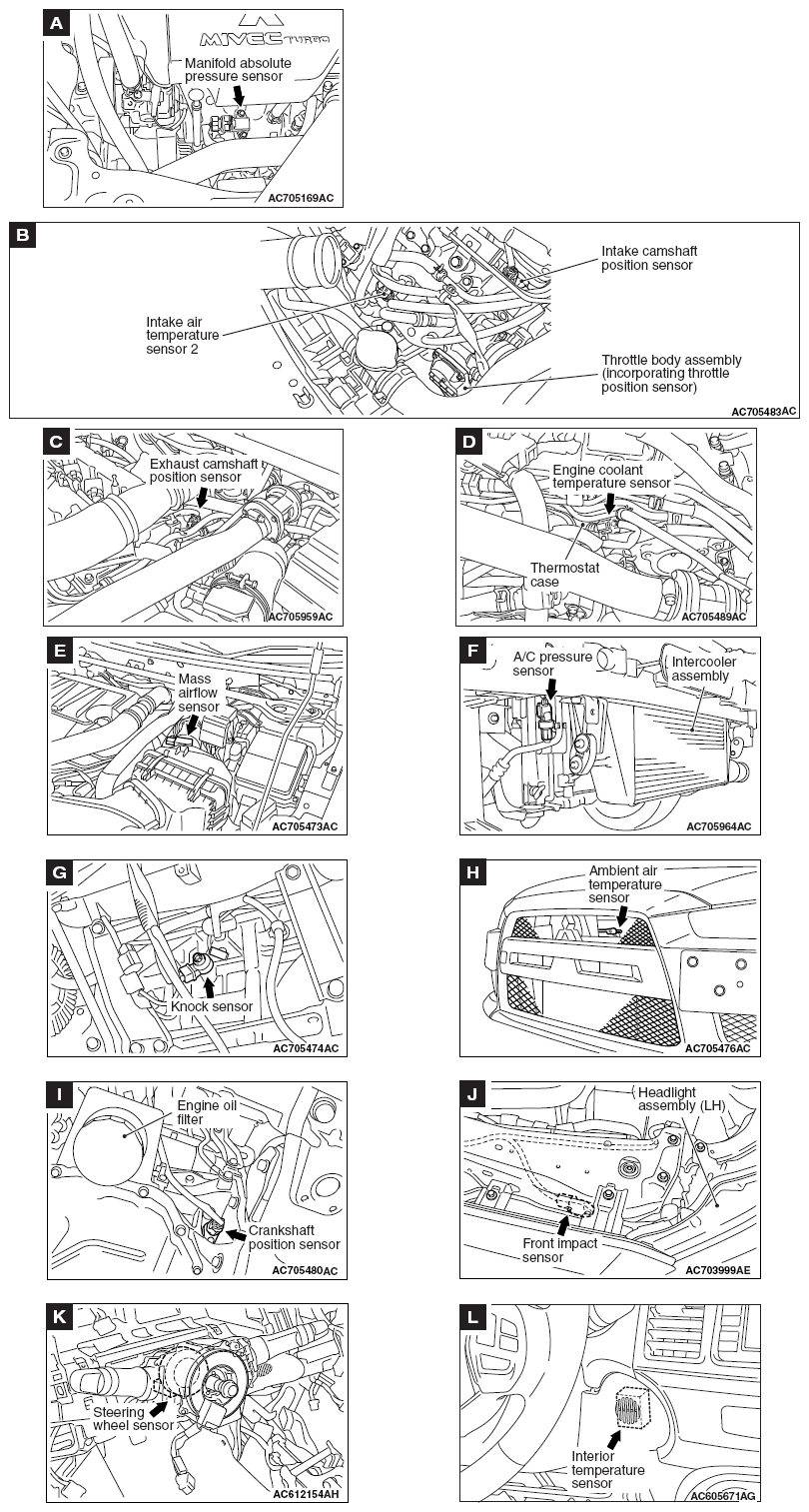

| A/C pressure sensor | F | Intake air temperature sensor 2 | B |

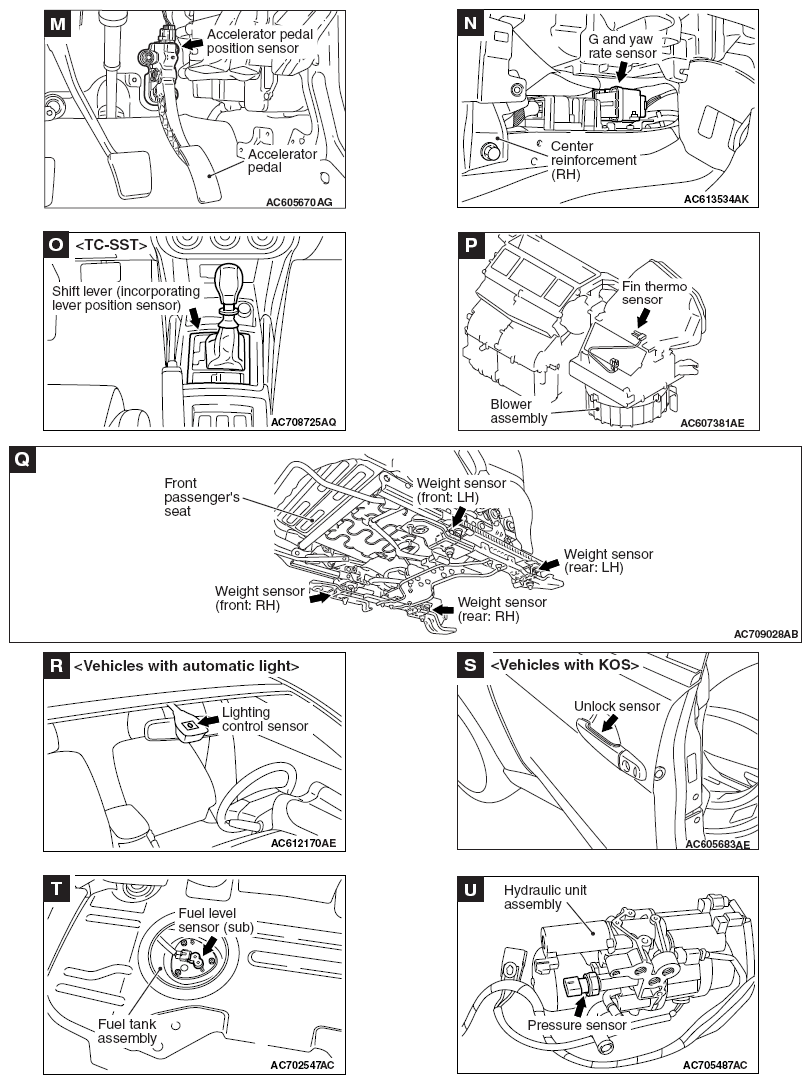

| Accelerator pedal position sensor | M | Intake camshaft position sensor | B |
| Ambient air temperature sensor | H | Interior temperature sensor | L |
| Crankshaft position sensor | I | Knock sensor | G |
| Engine coolant temperature sensor | D | Lighting control sensor < Vehicles with automatic light > | R |
| Exhaust camshaft position sensor | C | Manifold absolute pressure sensor | A |
| Fin thermo sensor | P | Mass airflow sensor | E |
| Front impact sensor | J | Pressure sensor | U |
| Front passenger's seat (incorporating weight sensor) | Q | Rear wheel speed sensor | a |

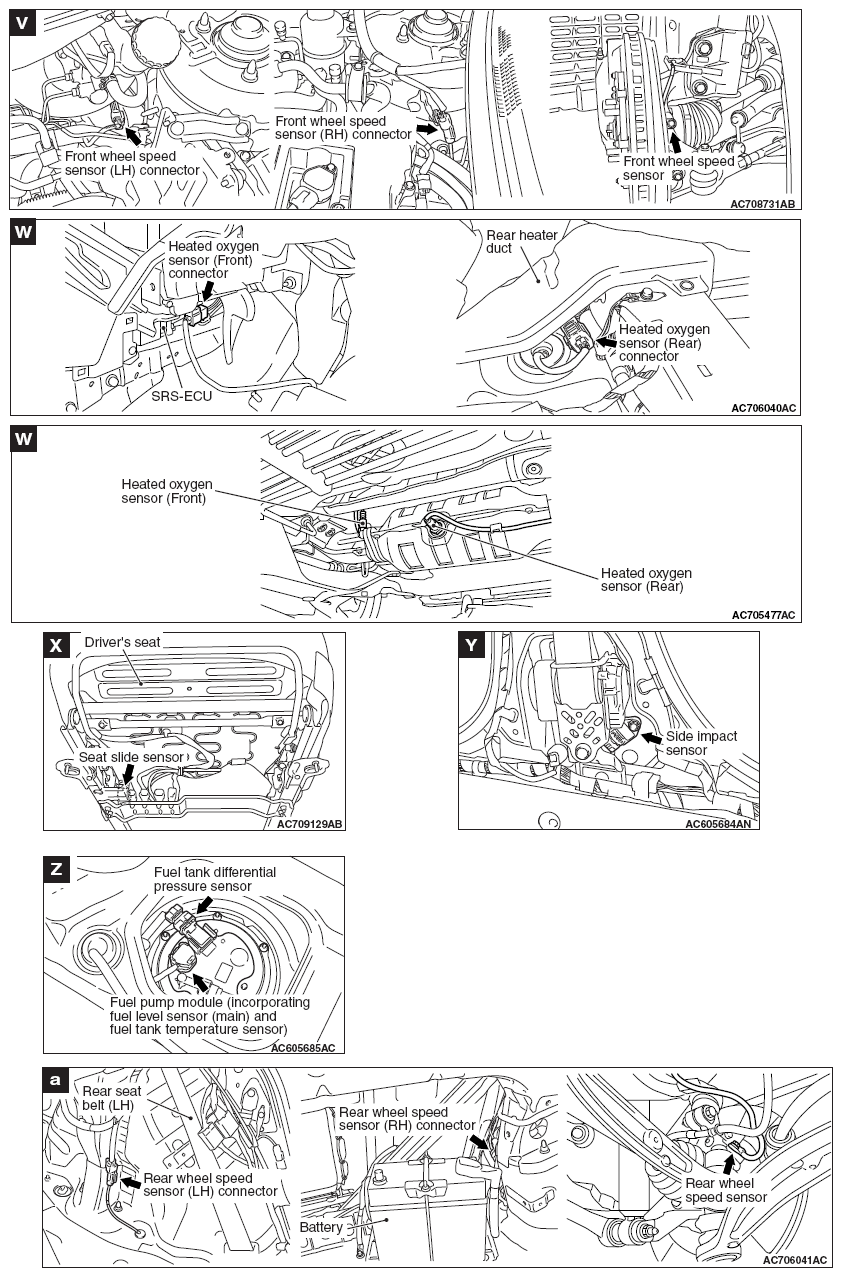

| Front wheel speed sensor | V | Seat slide sensor | X |
| Fuel level sensor (sub) | T | Shift lever (incorporating lever position sensor) < TC-SST > | O |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) | Z | Side impact sensor | Y |
| Fuel tank differential pressure sensor | Z | Steering wheel sensor | K |
| G and yaw rate sensor | N | Unlock sensor < Vehicles with KOS > | S |
| Heated oxygen sensor (Front) | W | Throttle body assembly (incorporating throttle position sensor) | B |
| Heated oxygen sensor (Rear) | W |
NOTE:
The * symbols indicate equipped at both sides.
