DTC B10C0, B10C1: Interior Temperature Sensor System: Notes

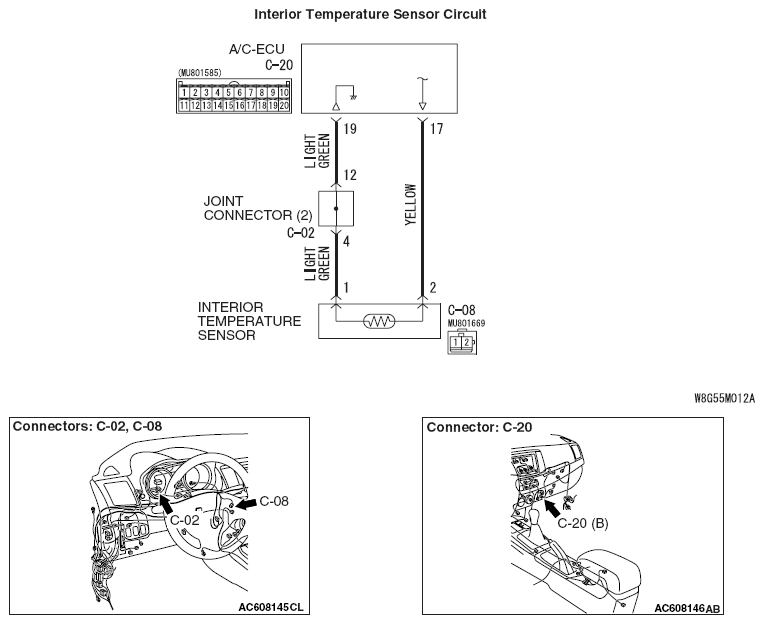

Fig 1: Interior Temperature Sensor Circuit Diagram
G06673747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
