Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Compartment Fuse/Relay Box | Left side of engine compartment. |

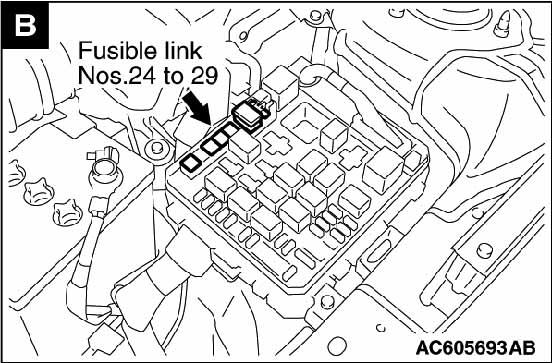

| Fusible Link No. 24, 25, 26, 27, 28 & 29 | On underhood fuse/relay block. See Figure. |

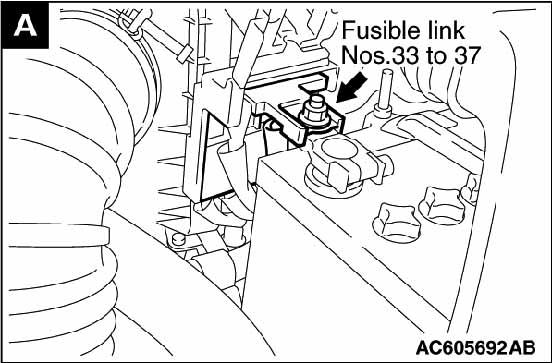

| Fusible Link No. 33, 34, 35, 36 & 37 | Next to battery. See Figure. |

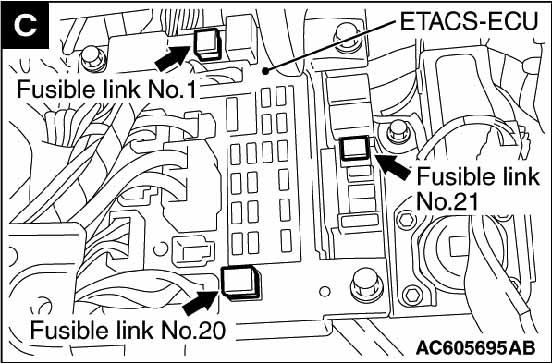

| Fusible Links No 1, No. 20 & No. 21 | On underdash junction block. See Figure. |
| Underdash Junction Block | Under left end of dash. |
| Underhood Fuse/Relay Box | Left side of engine compartment. |
