<<B>> Wheel Bearing Removal

WARNING: This page is about a different variant/trim than selected.

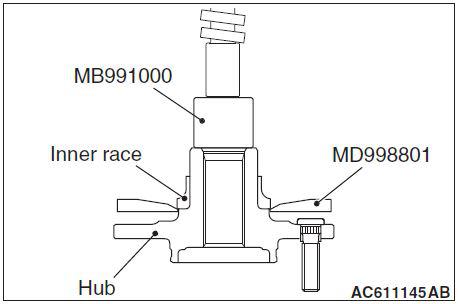

Use special tools MD998801 and MB991000 to remove the wheel bearing inner race (outside) from the hub.

Fig 1: Identifying Special Tools MD998801 And MB991000
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

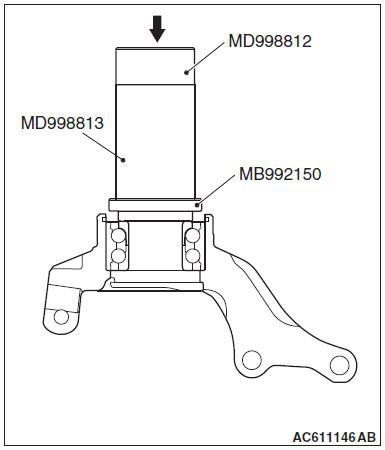

Use special tools MB992150, MD998812 and MD998813 to assemble the inner race (outside) removed from the hub to the wheel bearing.

Fig 2: Identifying Special Tools MB992150, MD998812 And MD998813
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

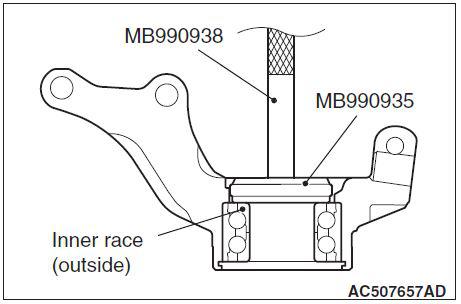

Use special tools MB990935 and MB990938 to remove the wheel bearing.

Fig 3: Identifying Special Tools MB990935 And MB990938
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
