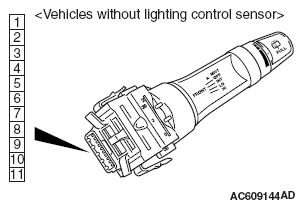

<Vehicles Without Lighting Control Sensor>
WARNING: This page is about a different variant/trim than selected.
CONTINUITY SPECIFICATION
| Switch position | Tester connection | Specified condition | |
|---|---|---|---|
| OFF | - | Open circuit | |
| Windshield intermittent wiper interval adjusting knob | 6 - 3 | Operating the adjusting knob changes the resistance. | |
| Windshield washer switch | 6 - 7 | Continuity exists (2 ohms or less) | |
| Windshield wiper switch | Hi | 6 - 8 | Continuity exists (2 ohms or less) |
| Lo | 6 - 9 | Continuity exists (2 ohms or less) | |
| Int | 6 - 10 | Continuity exists (2 ohms or less) | |
| Mist | 6 - 11 | Continuity exists (2 ohms or less) | |
