DTC B2471: On hook button stuck; DTC B2472: Off hook button stuck; DTC B2473: VR button stuck: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Before replacing the module, ensure that the communication circuit is normal.

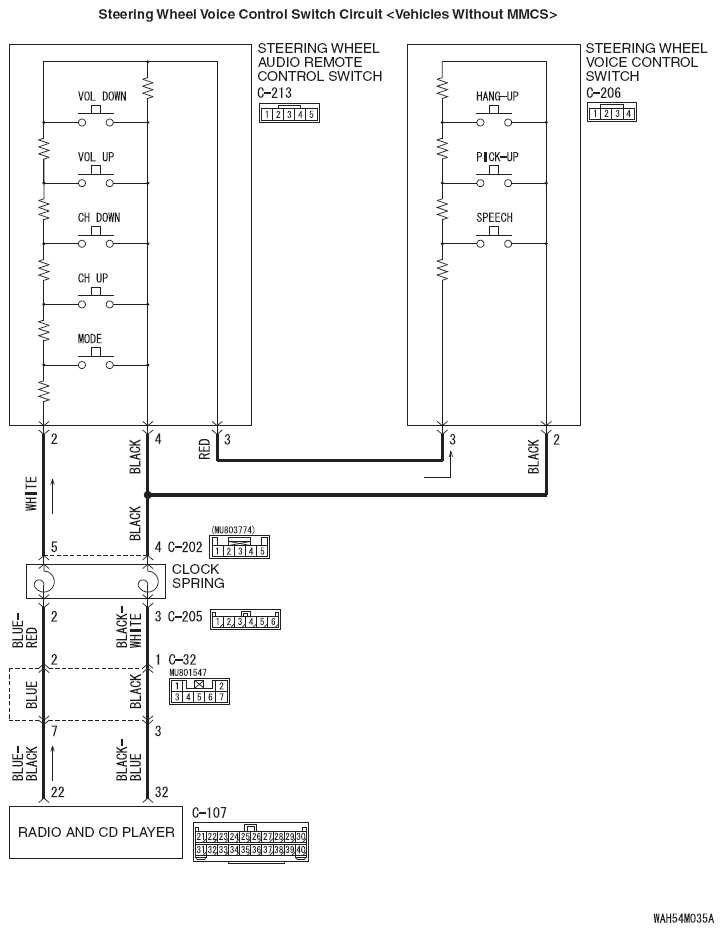

Fig 1: Steering Wheel Voice Control Switch Circuit Diagram (Vehicles Without MMCS)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

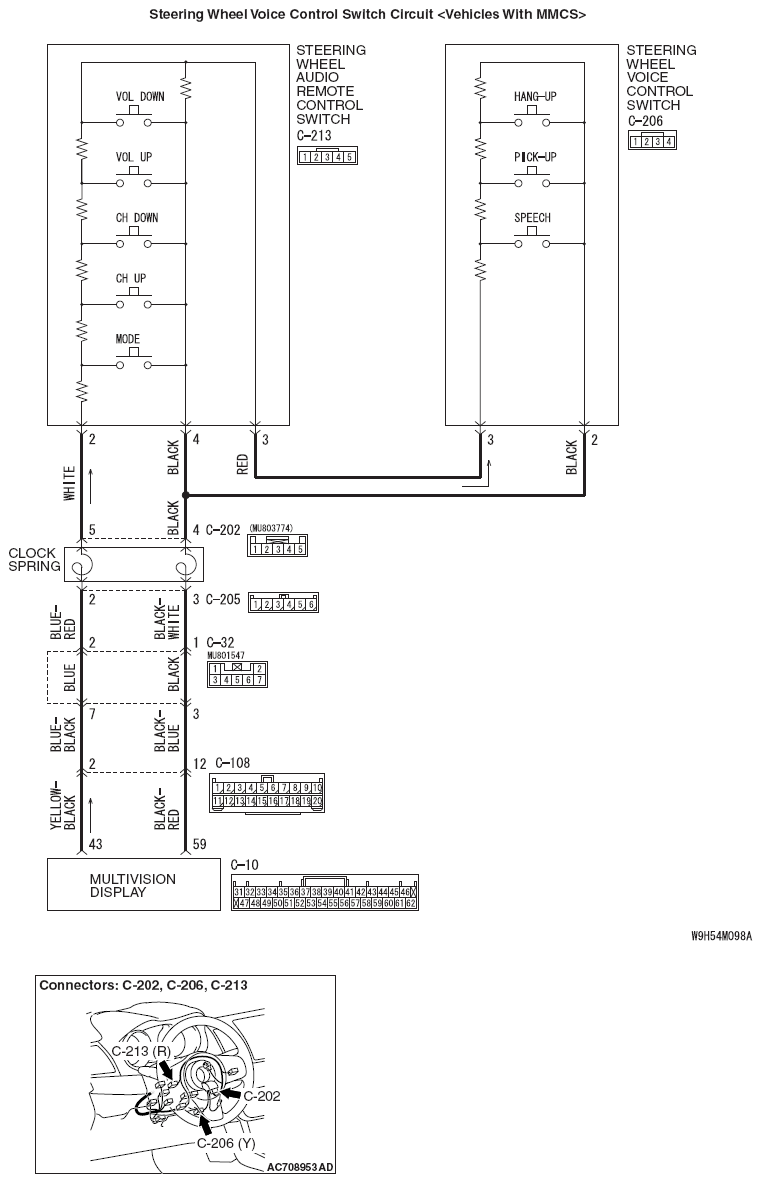

Fig 2: Steering Wheel Voice Control Switch Circuit Diagram (Vehicles With MMCS)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
