Versions Log Information

Displays logs for drive and HDD.

Service Data Log

1. Select "Versions Log Information" on "Service" screen.

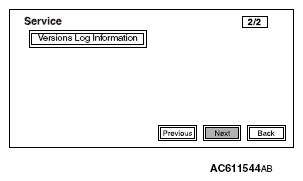

   Fig 1: Display - Versions Log Information

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Select "Service Data Log" on the "Versions Log Information" screen.
   Fig 2: Display - Versions Log Information Screen

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. The logs are displayed from the latest one.
4. The log data is erased by pressing "Delete."
   Fig 3: Display - Service Data Log

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   EACH LOG INFORMATION: FACTOR CODE TABLE

   EACH LOG INFORMATION CHART



   Item	Factor number	Produced log
   Drive	20	Log concerning focus
   	21	Log concerning disk type
   	22	Log concerning disk
   	25	Log concerning SEEK
   	26	Log concerning servo start-up
   	27	Log concerning power-On
   	28	Log concerning loading/eject operation
   	29	Log concerning pick-up operation
   	30	Log concerning state of mechanism
   	52	Log concerning TOC reading
   HDD	1	Log concerning high temperature
   	2	Log concerning low temperature
   Monitor	1	Log concerning high temperature
   AMP	0	Log concerning connection
   	15	Log concerning communication
   SP(1)	1,2,4,8	Log concerning number of speakers unexpected
   CAR(2)	0 - 12, 128 - 131, 133,160, 192,255	Log concerning vehicle model unexpected
   (1) The log is displayed when the number of speakers (2) The log is displayed when the vehicle model is unexpected.

1. Select "Time Adjustment Log" on the "Versions Log Information" screen.
   Fig 4: Display - Versions Log Information Screen

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. The time adjustment logs are displayed.

   As for Factor, the following two types are displayed.

   CT: Automatic adjustment

   MAN: Manual adjustment

   Fig 5: Display - Time Adjustment Information Screen

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
