Special Tools

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS SPECIFICATION

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992326 Washer nozzle adjustment tool	General service tool	Injection angle adjustment of the washer nozzle

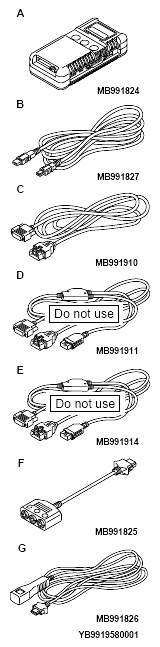

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Daimler Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Windshield wiper intermittent time check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector. Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	-	Making voltage and resistance measurement during troubleshooting
