<<A>> Windshield Washer Tank Assembly Removal

WARNING: This page is about a different variant/trim than selected.

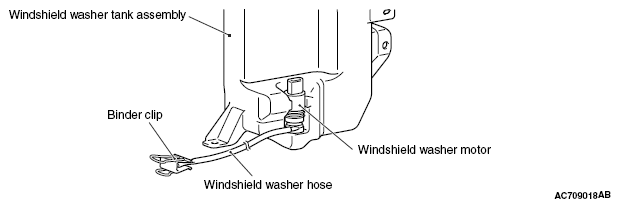

Fig 1: Identifying Windshield Washer Tank Assembly
G05396027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When removing the windshield washer tank assembly, close the windshield washer hose by a binder clip as shown, to prevent the windshield washer from flowing out.
