Windshield Wiper Motor Check

WARNING: This page is about a different variant/trim than selected.

The windshield wiper motor assembly should be installed to the vehicle body and the harness connector should be disconnected when checking the wiper motor.

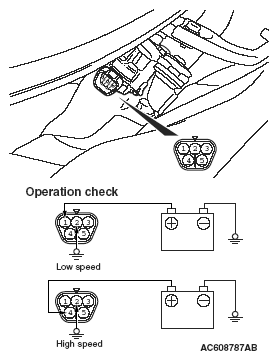

Fig 1: Checking Windshield Wiper Motor Connector Terminal
G05384538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
