Removal And Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

To remove the driver air bag module, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION .)

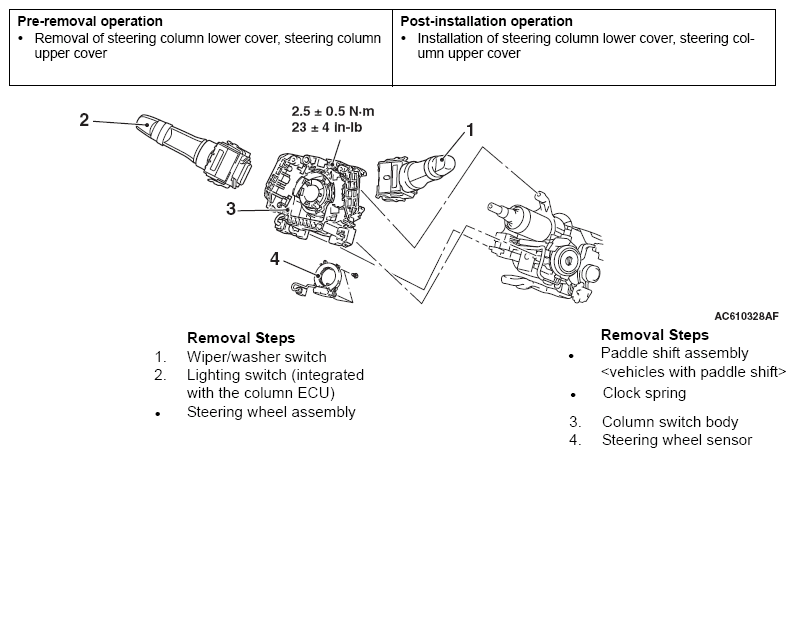

Fig 1: Identifying Lighting Switch, Wiper And Washer Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
