Inspection Procedure 1: Steering wheel audio remote control switch does not Function. <Vehicles with radio and CD player>: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

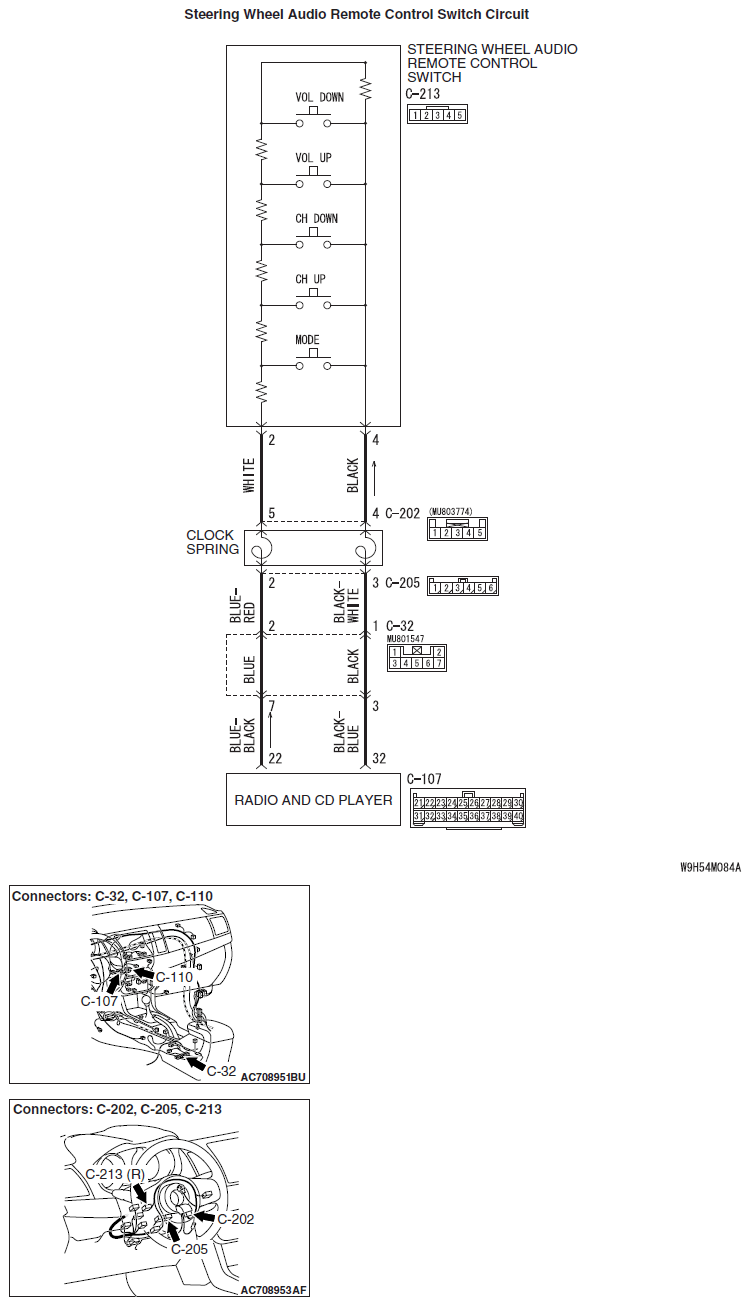

Fig 1: Steering Wheel Audio Remote Control Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
