Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable.

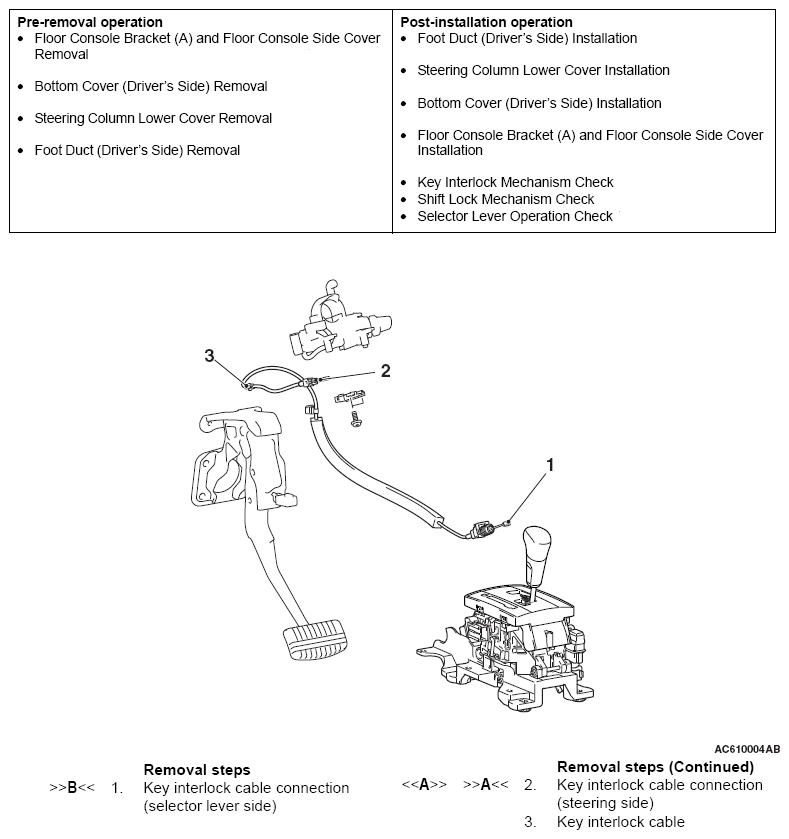

Fig 1: Identifying CVT Key Interlock And Shift Lock Mechanisms Components
G06665808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
