How To Read Data List
WARNING: This page is about a different variant/trim than selected.
Required Special Tools:
- MB991958 : Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

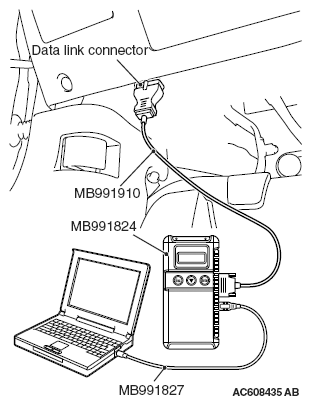

- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "System select" from the start-up screen.
- Select "From 06 MY."
- Make sure vehicle information is correct.
- Select "AT/CVT/A-MT/TC-SST."
- Select "Data List."
- Choose an appropriate item and select the "OK" button.
