DTC P0826: Malfunction of Shift Switch Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

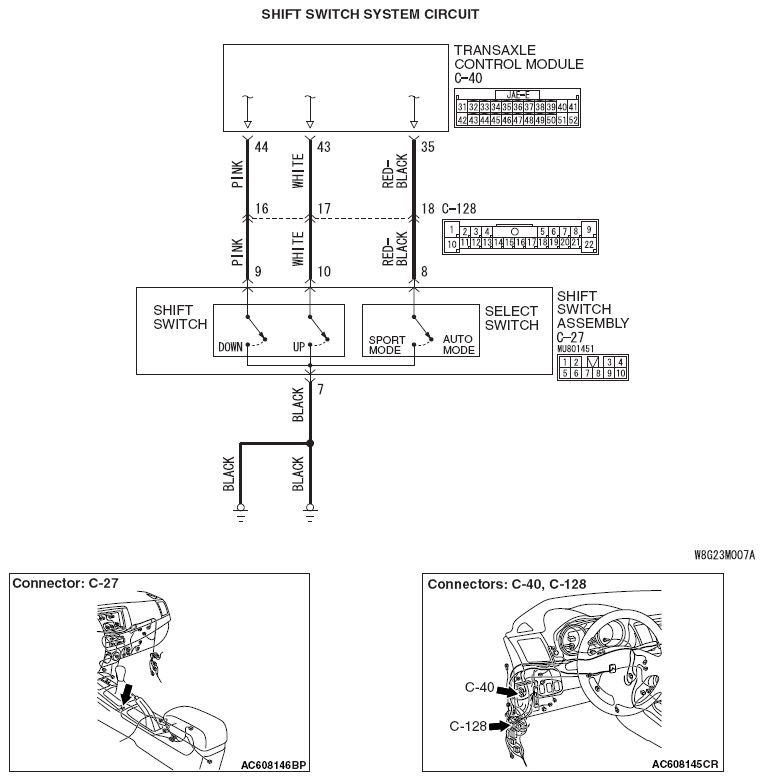

Fig 1: Shift Switch Circuit Diagram
G06665746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
