DTC P1637: Malfunction of Memory Backup: Notes

WARNING: This page is about a different variant/trim than selected.

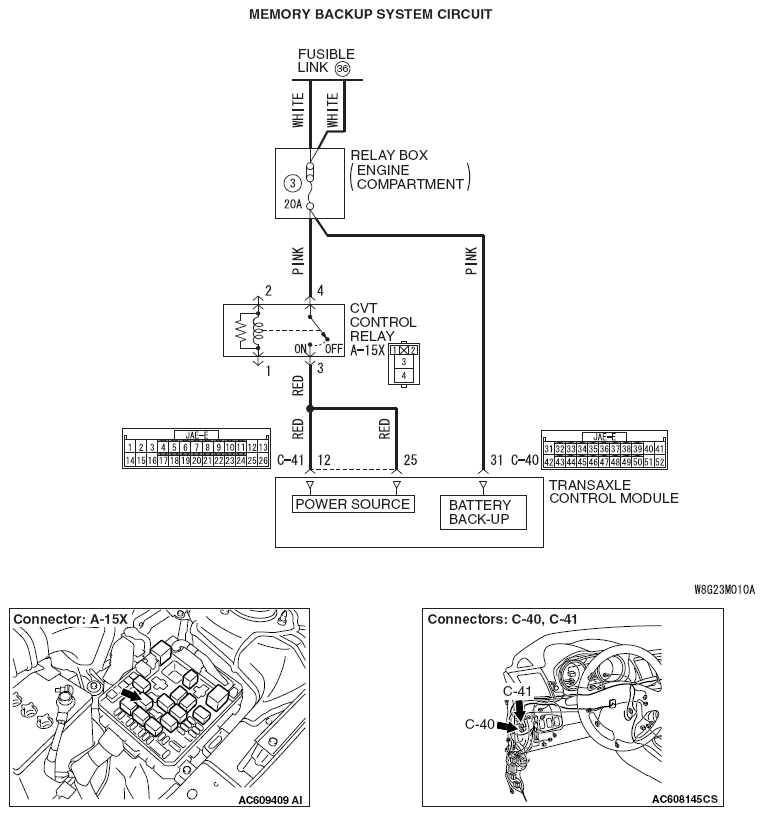

Fig 1: Memory Backup System Circuit Diagram
G06665752Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
