<2.0L Engine>

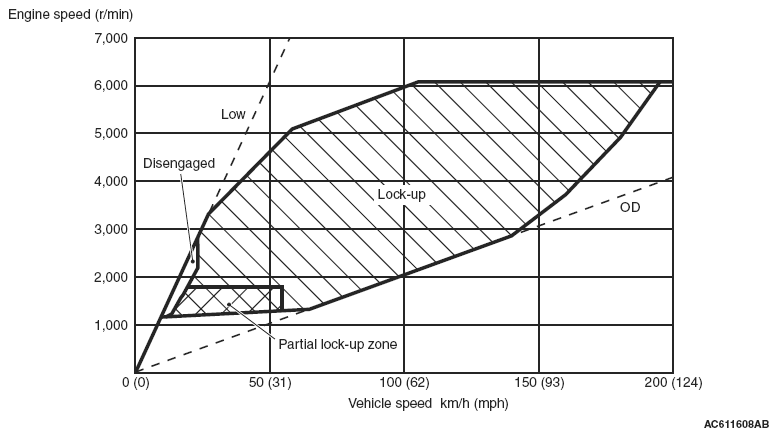

Fig 1: Shift Range Graph - Direct Control (Torque Converter Clutch Control) (2.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
