<2.4L Engine - D Range>

WARNING: This page is about a different variant/trim than selected.

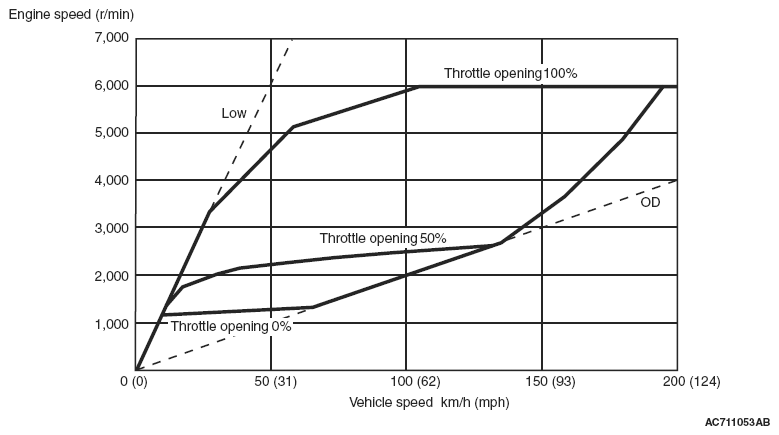

Fig 1: Shift Range Graph - D Range (2.4L Engine)
G06665712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
