<L Range (Vehicles Without Sport Mode)>

WARNING: This page is about a different variant/trim than selected.

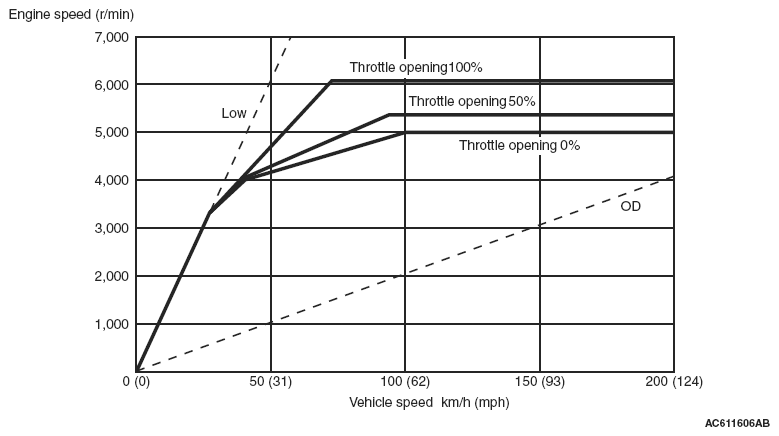

Fig 1: Shift Range Graph - L Range (Vehicles Without Sport Mode)
G06665713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By limiting the shift range to the area around the lowest pulley ratio, the powerful driving force and engine brake is secured.
