Sectional View

WARNING: This page is about a different variant/trim than selected.

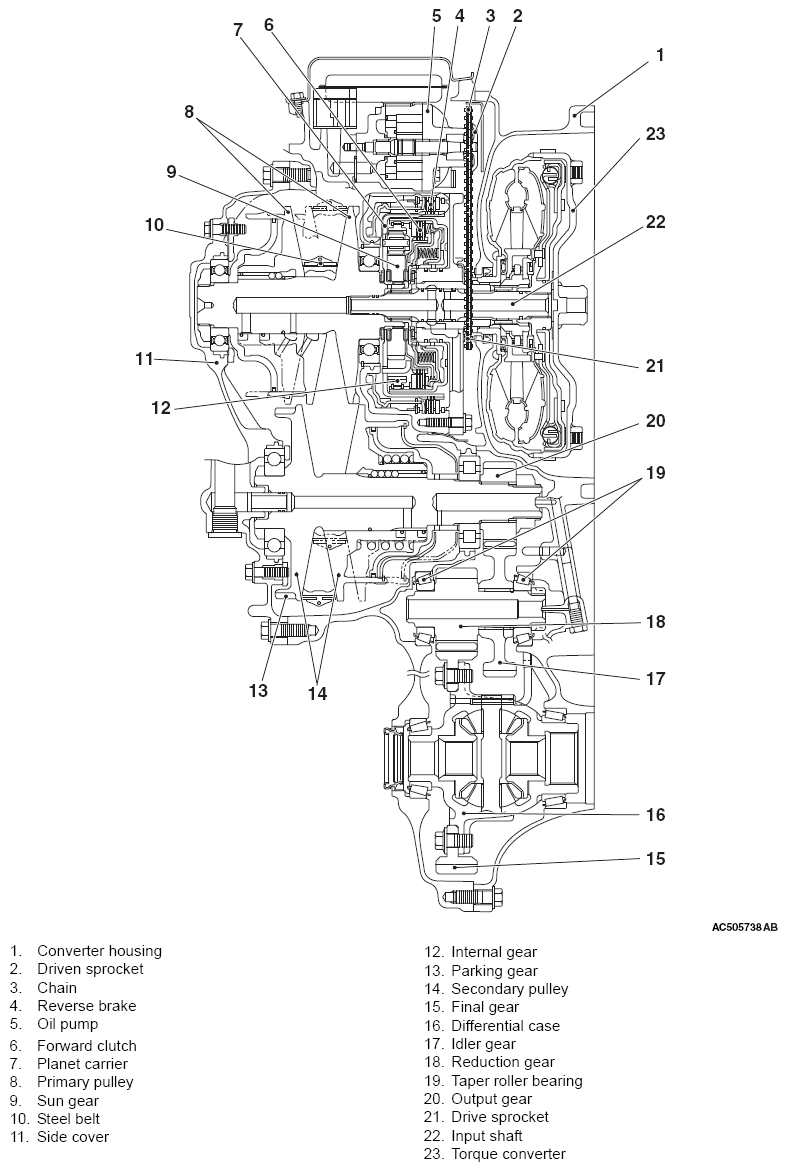

Fig 1: Sectional View Of Transaxle
G06665705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
