System Construction Diagram

WARNING: This page is about a different variant/trim than selected.

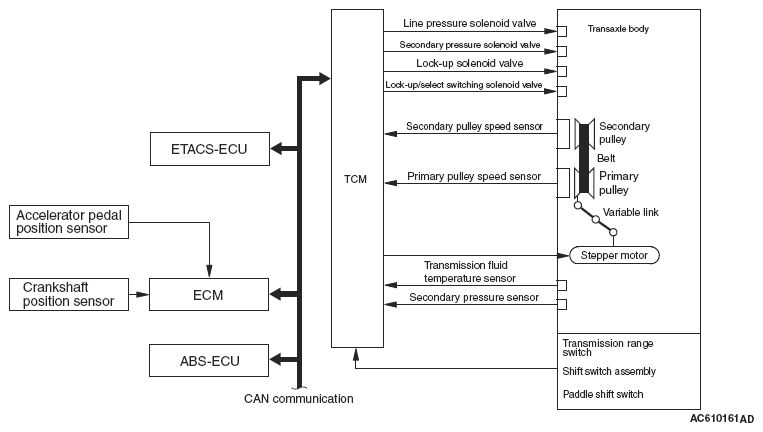

Fig 1: Transaxle System Construction Diagram
G06665710Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
