CVT Control Component Layout

WARNING: This page is about a different variant/trim than selected.
CVT CONTROL COMPONENT CHART

Name Symbol Name Symbol
Accelerator pedal position sensor K Primary pulley speed sensor E
CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor) F Secondary pulley speed sensor B
CVT control relay C Shift lock solenoid L
Crankshaft position sensor A Shift switch assembly <Vehicles with sport mode> L
Data link connector I Stoplight switch J
Paddle shift switch <Vehicles with sport mode> H TCM G
Transmission range switch D

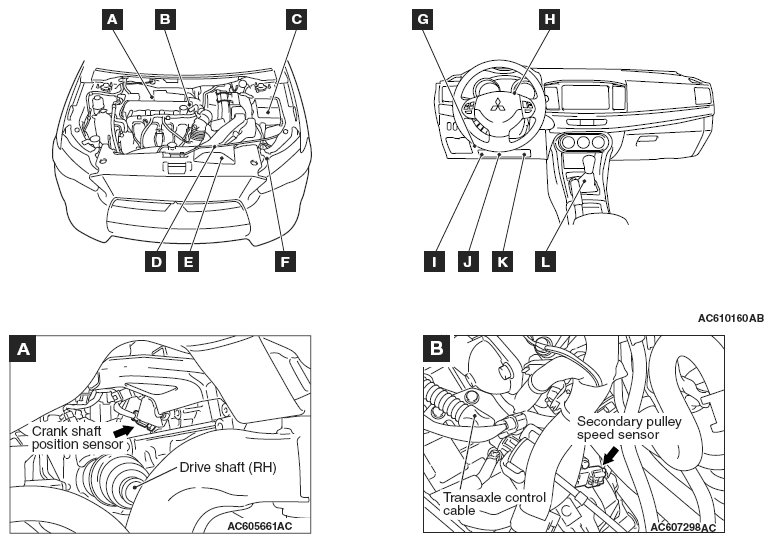

Fig 1: Identifying CVT Control Component Layout (1 Of 2)
G06665779Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

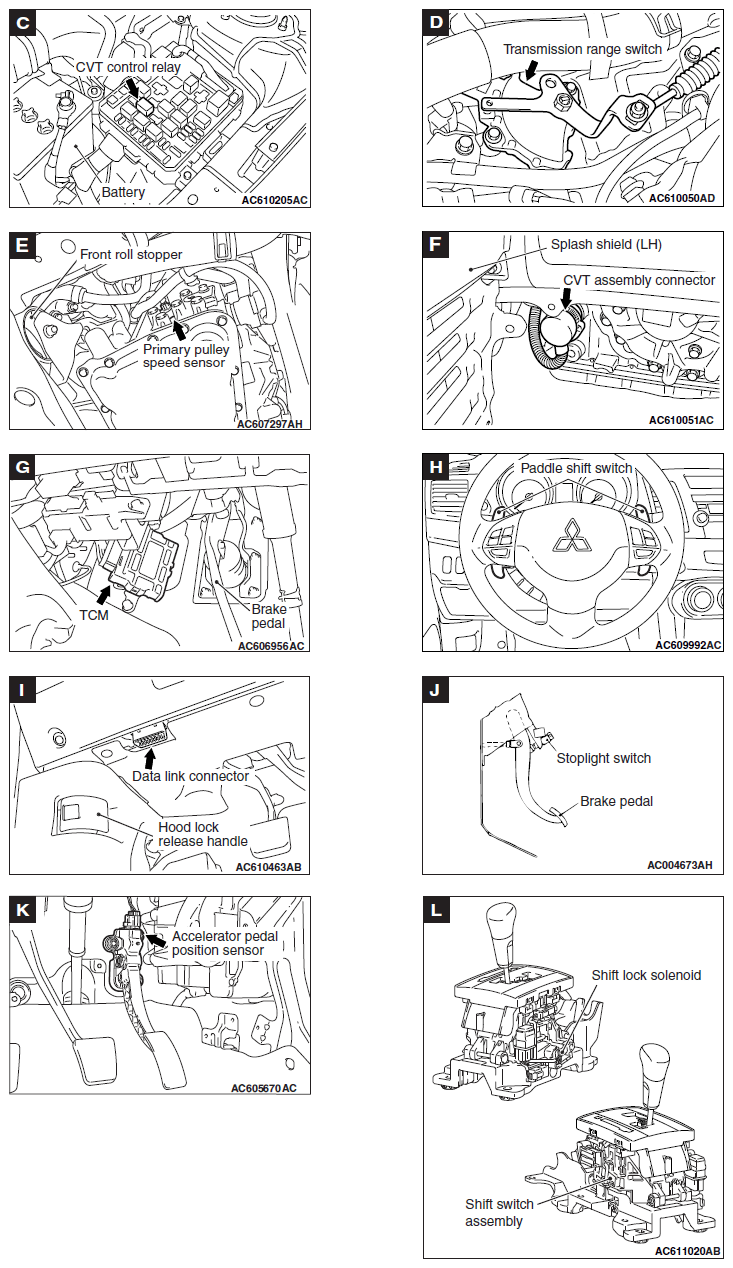

Fig 2: Identifying CVT Control Component Layout (2 Of 2)
G06665780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
