Paddle Shift Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Check that the paddle shift lever is returned to the original position quickly when the lever is released after operation of the paddle shift lever (+/- side) (pulling to the rear side of the vehicle). In addition, check for abnormal looseness, friction and abnormal noise.
  2. Remove the paddle shift assembly. (Refer to STEERING COLUMN SHAFT ASSEMBLY .)

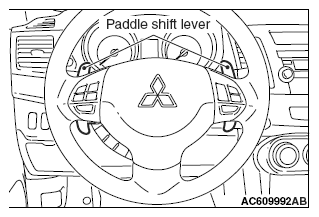

    Fig 1: Identifying Paddle Shift Lever
    G06665798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check the continuity between the paddle shift switch connecter terminals.

    Standard value:

    RESISTANCE SPECIFICATION

    Paddle shift lever Terminal number Resistance value
    Upshift and hold the lever. 1 - 2 Continuity exists (2 Ω or less).
    Downshift and hold the lever. 2 - 3
    No operation No continuity between the terminals.

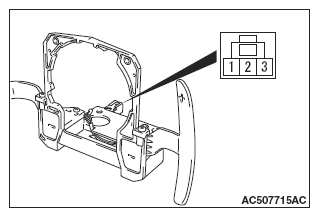

    Fig 2: Identifying Paddle Shift Switch Connecter Terminals
    G06665799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. In the cases other than the above, replace the paddle shift assembly.
